Rear Axle Carrier: Components

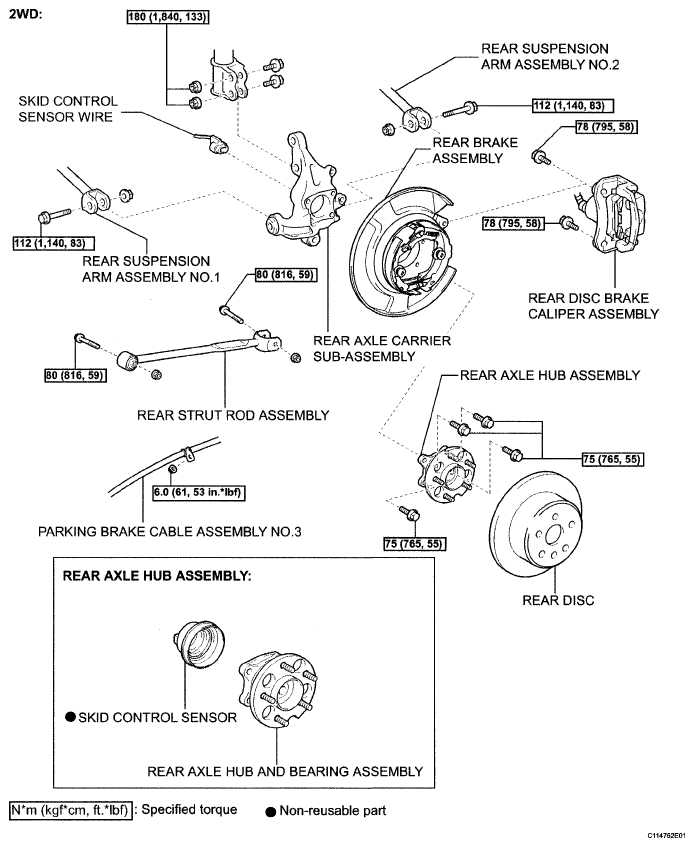

Fig 1: Rear Axle Carrier Replacement Components With Torque Specifications (1 Of 2)
G05202447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

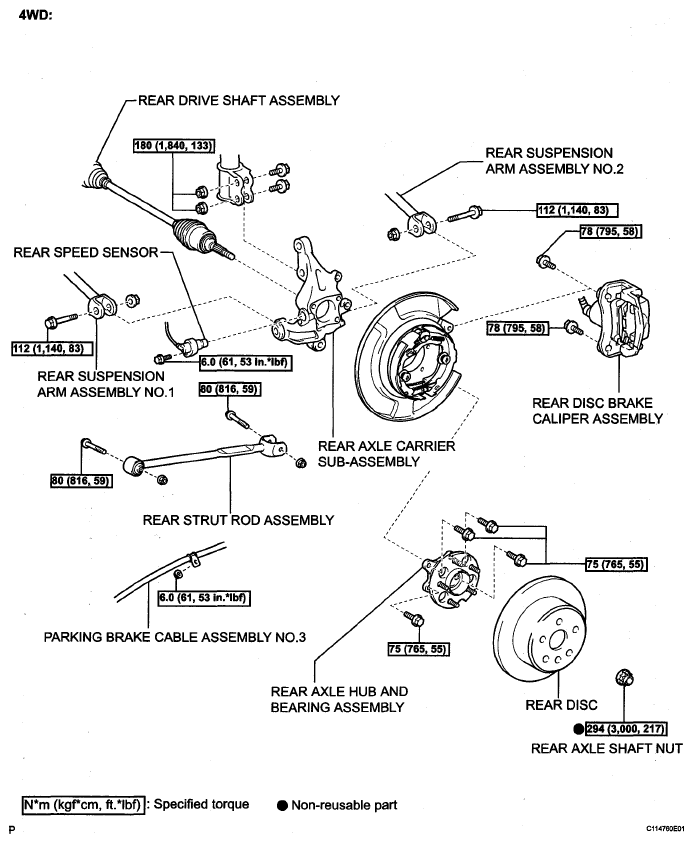

Fig 2: Rear Axle Carrier Replacement Components With Torque Specifications (2 Of 2)
G05279547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
