Home >> Lexus >> 2007 >> RX 400h FWD >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting >> Rear Side Marker Light Assembly >> Components

Rear Side Marker Light Assembly: Components

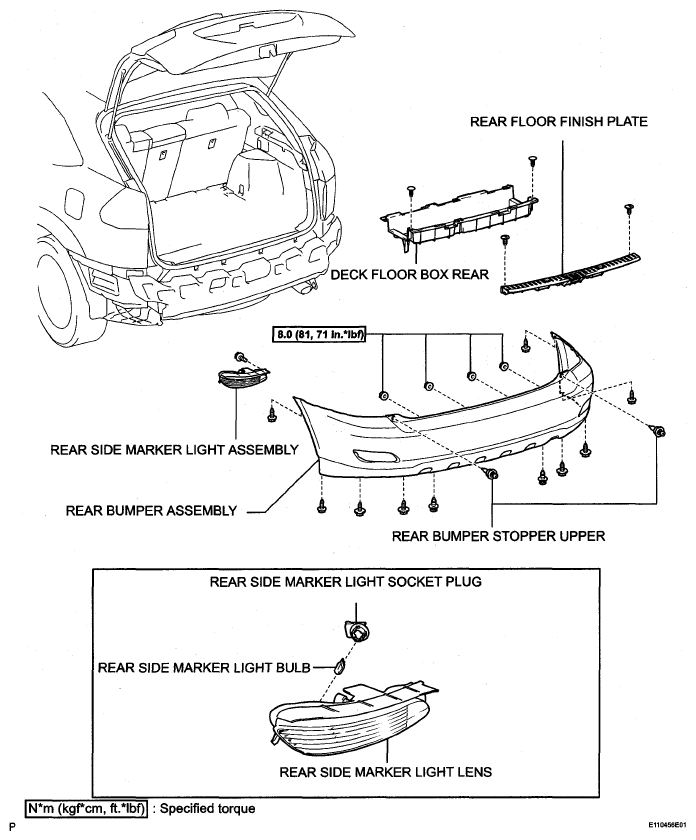

Fig 1: Rear Side Marker Light Assembly Replacement Components With Torque Specifications

G05280224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
