Headlight Beam Level Control ECU Power Source Circuit: Wiring Diagram

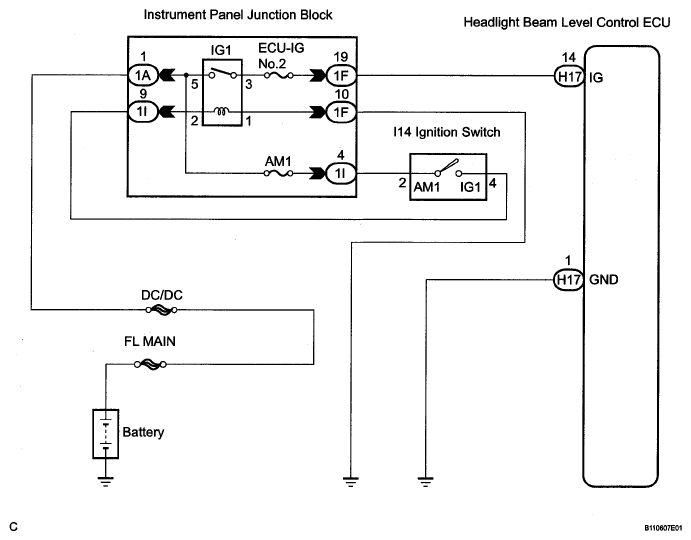

Fig 1: Wiring Diagram - Headlight Beam Level Control ECU Power Source Circuit

G05280102

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
