Hybrid Vehicle Transaxle Assembly: Components

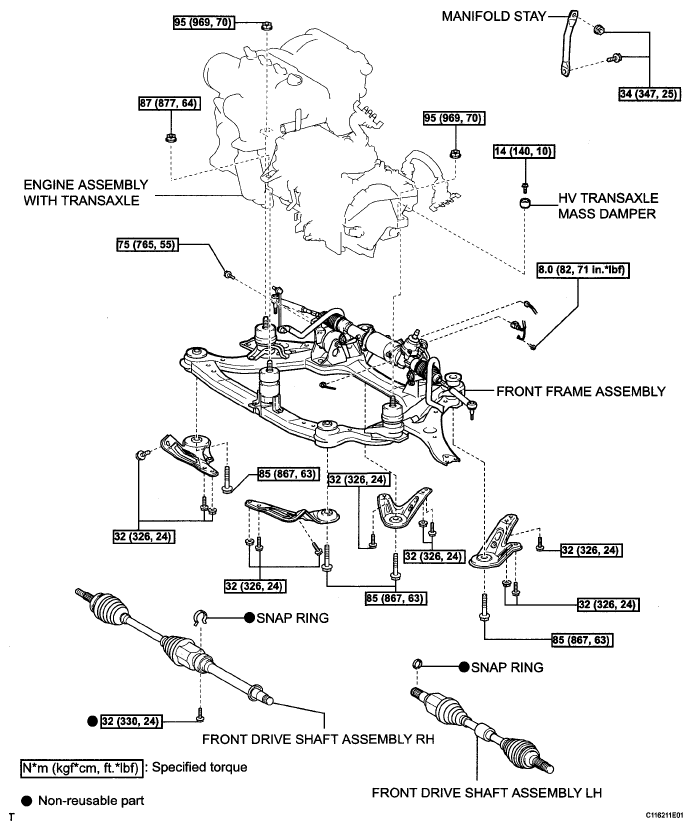

Fig 1: Hybrid Vehicle Transaxle Assembly Replacement Components With Torque Specifications(1 Of 2)
G05279290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

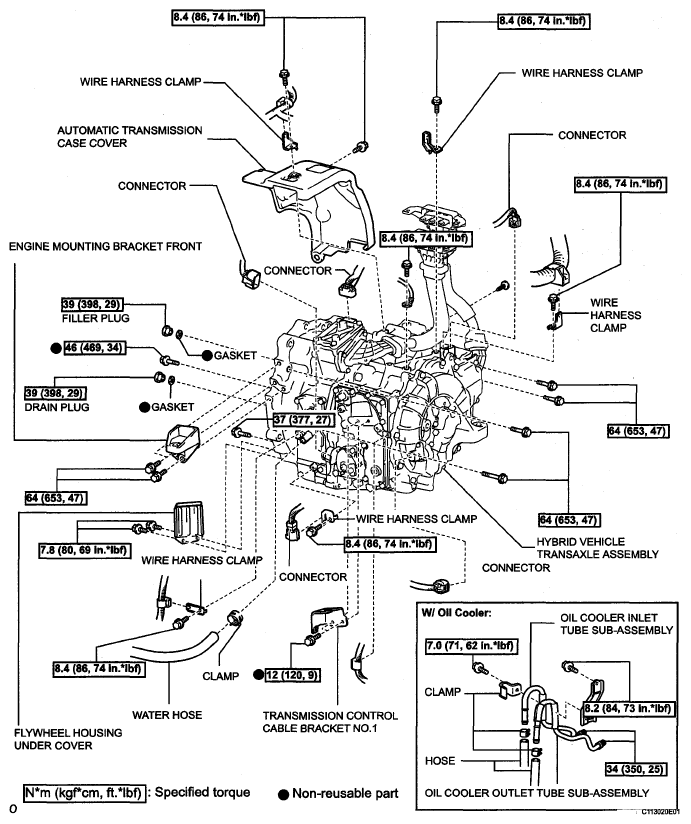

Fig 2: Hybrid Vehicle Transaxle Assembly Replacement Components With Torque Specifications(2 Of 2)
G05279291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
