Steering Column Assembly: Removal

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag activation.
  2. REMOVE STEERING WHEEL PAD ASSEMBLY
    1. Place the front wheels facing straight ahead.
    2. Remove the No. 2 and No. 3 steering wheel lower covers.
    3. Using a "torx" socket wrench, loosen the 2 "torx" screws.

      HINT:

      Loosen the 2 screws until the groove along the screw circumference catches on the screw case.

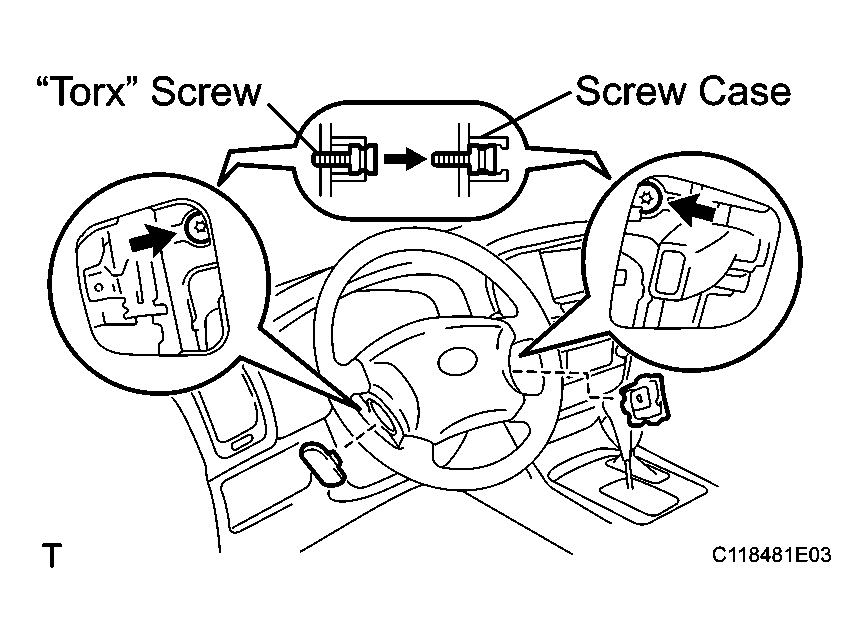

      Fig 1: Loosening 2 Torx Screws
      G04443712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Pull the pad out from the steering wheel and disconnect the 2 airbag connectors.
    5. Disconnect the connector.
      CAUTION:
      • When storing the wheel pad, keep the upper surface of the pad facing upward.
      • Never disassemble the wheel pad.
      NOTE: When removing the wheel pad, take care not to pull the airbag wire harness.

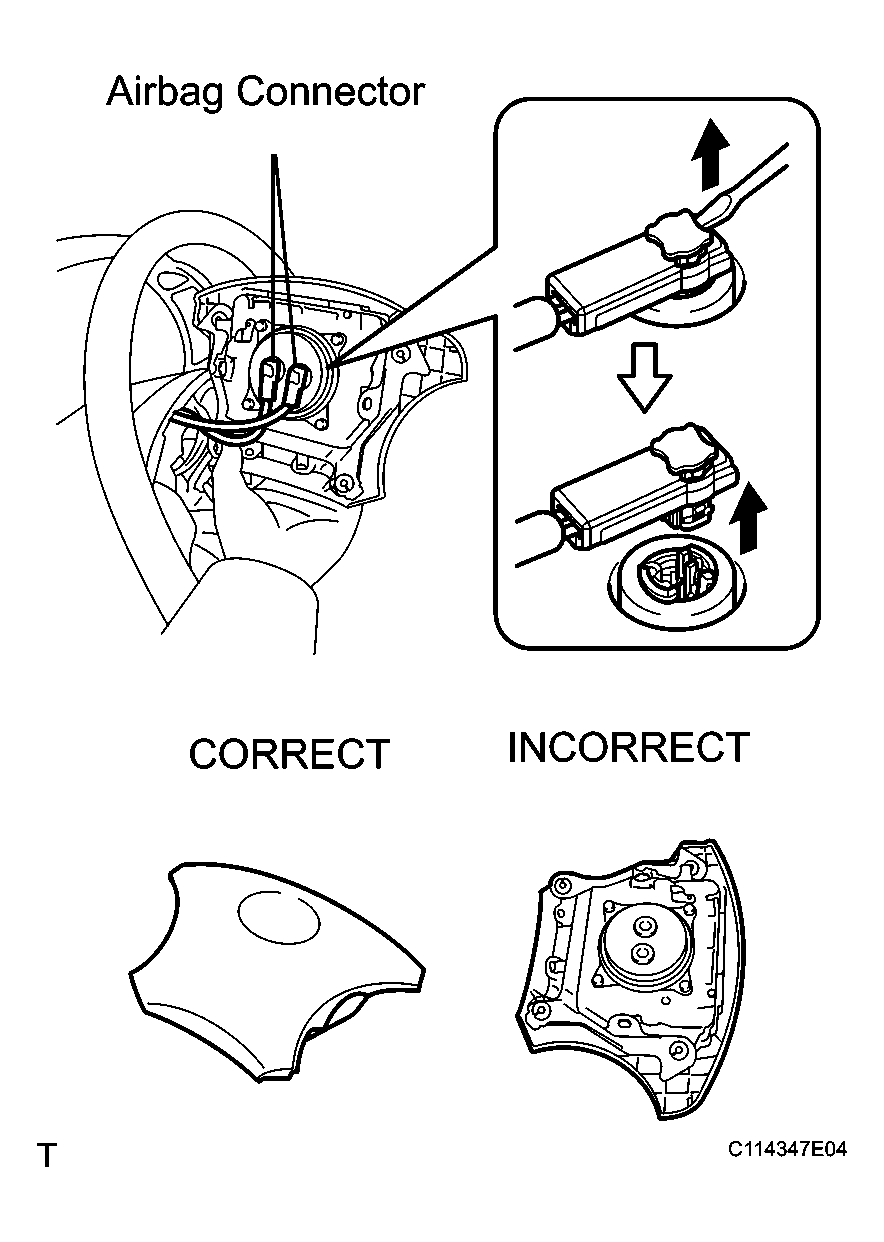

      Fig 2: Pulling Pad Out From Steering Wheel For Disconnecting 2 Airbag Connectors
      G04443713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE STEERING WHEEL ASSEMBLY
    1. Disconnect the connector.
    2. Remove the steering wheel set nut.
    3. Place matchmarks on the steering wheel and main shaft assembly.
    4. Using SST, remove the wheel.

      SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  4. REMOVE STEERING COLUMN COVER LOWER
    1. Remove the 3 screws and column cover.

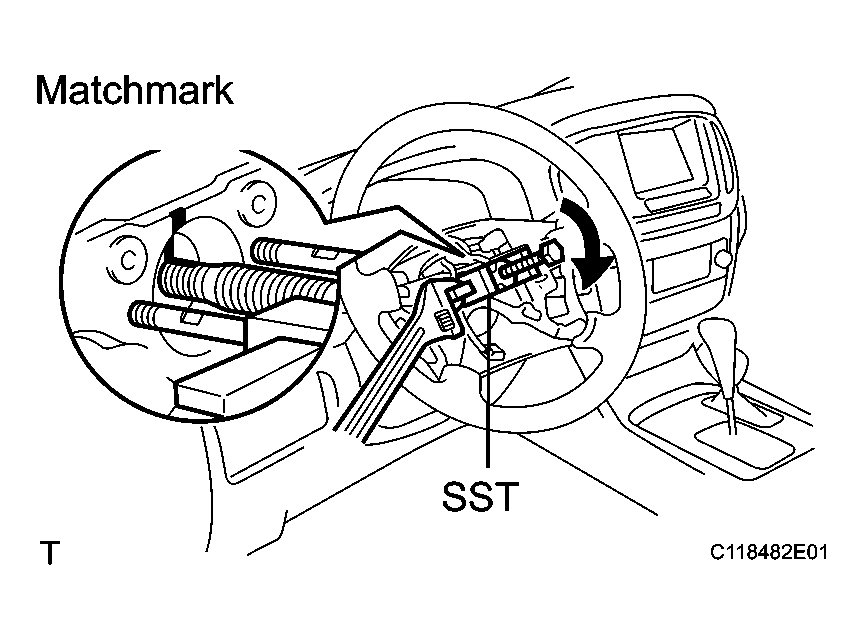

      Fig 3: Placing Matchmarks On Steering Wheel & Main Shaft Assembly
      G04443714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STEERING COLUMN COVER UPPER
  6. REMOVE COMBINATION SWITCH WITH SPIRAL CABLE
    1. Disconnect the 5 connectors.
    2. Disconnect the airbag connector.
    3. Remove the 3 screws and combination switch.
  7. REMOVE SPIRAL CABLE SUB-ASSEMBLY
    NOTE: Do not disassembly the cable or apply oil to it.
  8. REMOVE FRONT DOOR SCUFF PLATE LH
  9. REMOVE COWL SIDE TRIM BOARD LH
    1. Remove the clip and cowl trim.
  10. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL LOWER
    1. Remove the connector and cluster finish panel.
  11. REMOVE NO. 1 PANEL LOWER
    1. Remove the 2 screws and disconnect the hood lock release lever from the panel.
    2. Remove the 2 screws and disconnect the fuel lid release lever from the panel.
    3. Remove the pad set screw and panel.
  12. REMOVE LH PANEL LOWER
    1. Remove the 4 bolts and panel.
  13. REMOVE NO. 2 HEATER TO REGISTER DUCT
    1. Remove the screw and No. 2 heater to register duct.
  14. DISCONNECT NO. 2 INTERMEDIATE SHAFT ASSEMBLY
    1. Place matchmarks on the No. 2 intermediate shaft and control valve shaft.
    2. Loosen the bolt A.
    3. Remove the bolt B and the bolt C, disconnect the No. 2 intermediate shaft from the control valve shaft and sliding yoke.
  15. REMOVE NO. 2 INTERMEDIATE SHAFT ASSEMBLY
  16. REMOVE NO. 2 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
    1. Remove the 4 bolts and hole cover.
  17. REMOVE STEERING COLUMN ASSEMBLY
    1. Disconnect the connectors.

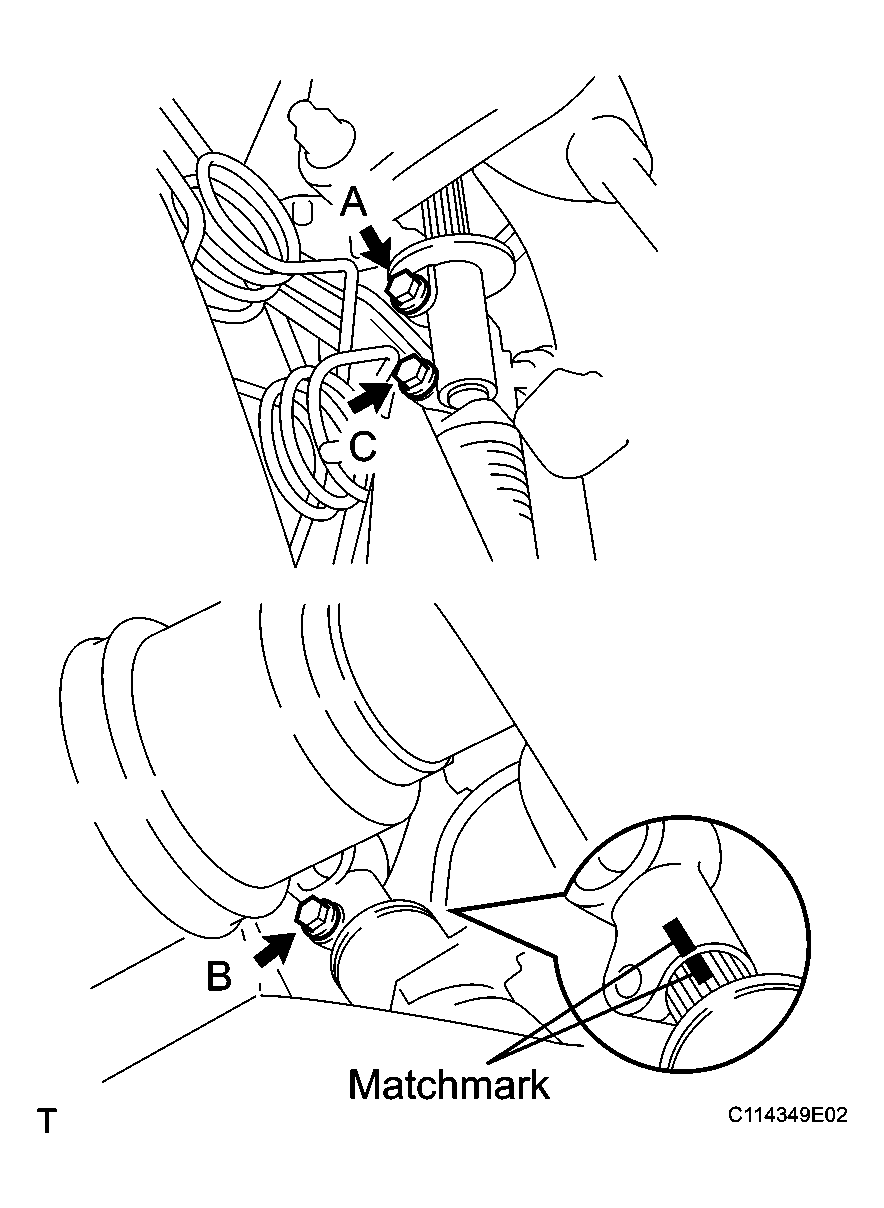

      Fig 4: Placing Matchmarks On No. 2 Intermediate Shaft & Control Valve Shaft
      G04443715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the hose clamp.
    3. Remove the 4 nuts and steering column assembly.

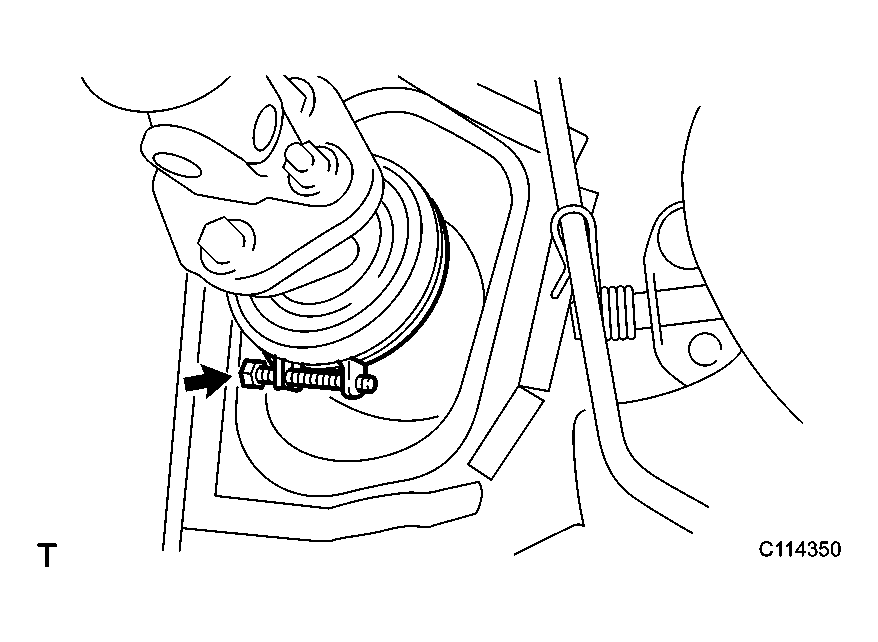

      Fig 5: Loosening Hose Clamp
      G04443716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE STEERING SLIDING YOKE
    1. Remove the bolt A and sliding yoke.
    2. Remove the thrust stopper from the intermediate shaft.
  19. REMOVE HOSE CLAMP
  20. REMOVE NO. 2 STEERING COLUMN HOLE COVER SUB-ASSEMBLY
    Fig 6: Removing Bolt A & Sliding Yoke
    G04443717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
