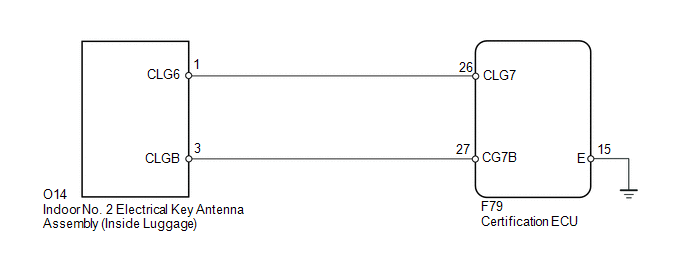

DTC B27A7: Open in Inside Luggage Compartment Electrical Key Oscillator Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2010 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
