DTC B27A6: Open in Rear Floor Electrical Key Oscillator Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2010 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

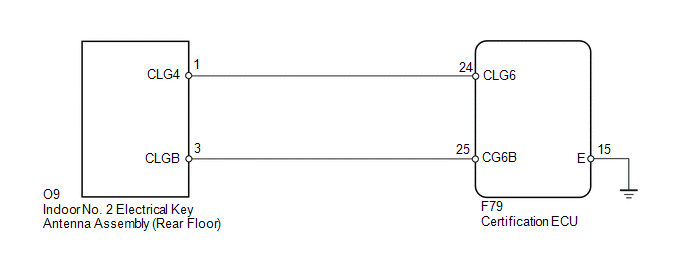

Fig 1: Identifying Rear Floor Electrical Key Oscillator Wiring Diagram
GTY217397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
