Parts Location: Illustration

WARNING: This page is about a different car, the 2010 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

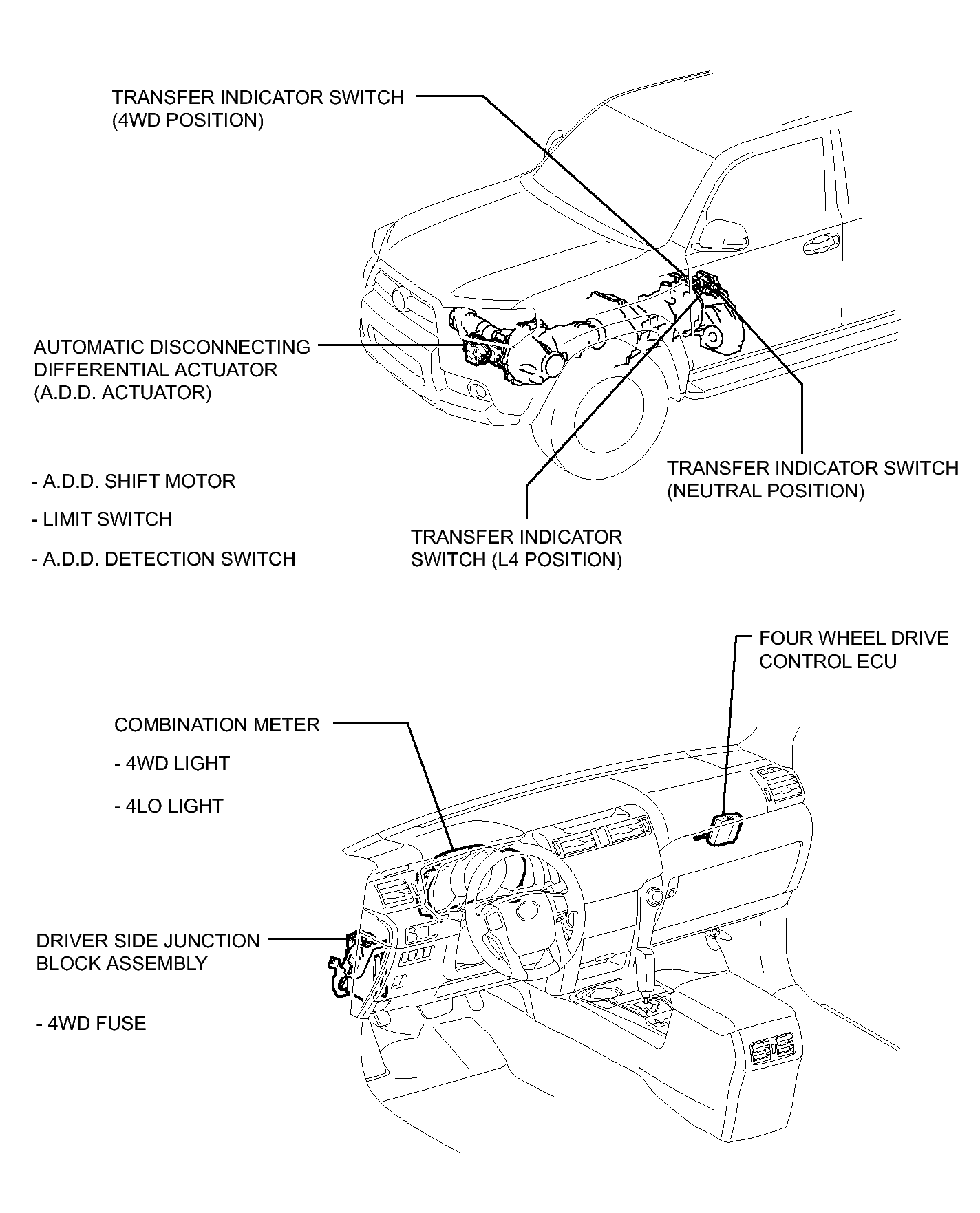

Fig 1: Identifying Transfer System Components Location
GTY223111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
