Navigation Ecu: Removal

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE DECK BOARD SUB-ASSEMBLY (See  REMOVAL  )
  3. REMOVE TONNEAU COVER ASSEMBLY
  4. REMOVE JACK CARRIER SUPPORT
  5. REMOVE JACK ASSEMBLY
  6. REMOVE JACK CARRIER ASSEMBLY
  7. REMOVE DECK FLOOR BOX FRONT (See  REMOVAL  )
  8. REMOVE DECK FLOOR BOX REAR (See  REMOVAL  )
  9. REMOVE DECK NO.2 BOARD SUB-ASSEMBLY (See )
  10. REMOVE DECK NO.3 BOARD SUB-ASSEMBLY (See  REMOVAL  )
  11. REMOVE REAR FLOOR FINISH PLATE (See  REMOVAL  )
  12. REMOVE DECK SIDE TRIM LH BOX (See  REMOVAL  )
  13. REMOVE DECK SIDE TRIM RH BOX
  14. REMOVE NAVIGATION ECU
    1. Disengage the clamp and disconnect the 3 connectors.
    2. Remove the 3 bolts and the navigation ECU.

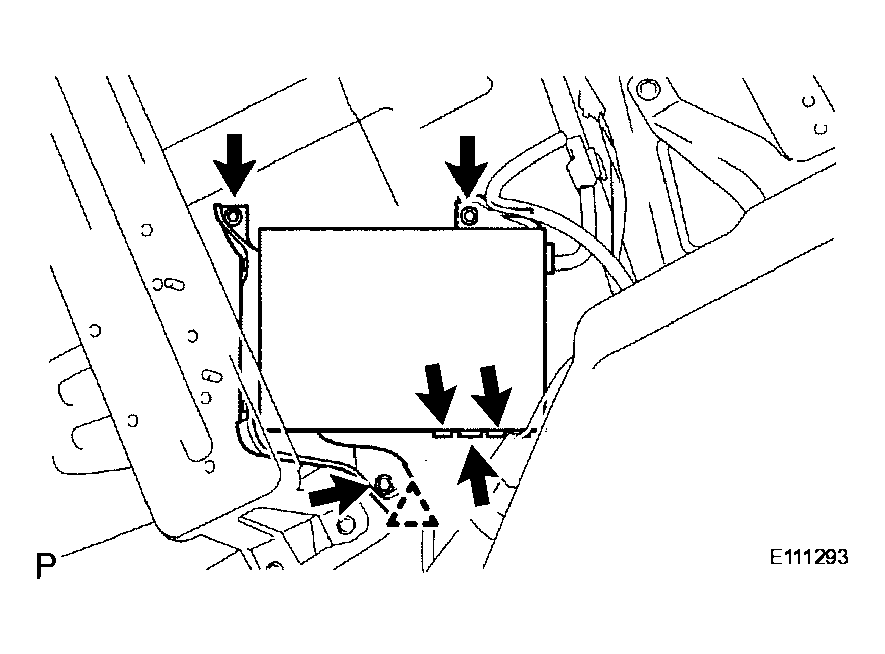

      Fig 1: Identifying Bolts And Navigation ECU
      G04115931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE DISC PLAYER BRACKET
    1. Remove the screw and the disc player bracket.
      Fig 2: Identifying Screw And Disc Player Bracket
      G04115932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO.2 DISC PLAYER BRACKET
    1. Remove the 2 screws and the No.2 disc player bracket.
      Fig 3: Identifying Screws And No.2 Disc Player Bracket
      G04115933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
