Radio Receiver: Installation

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL RADIO RECEIVER

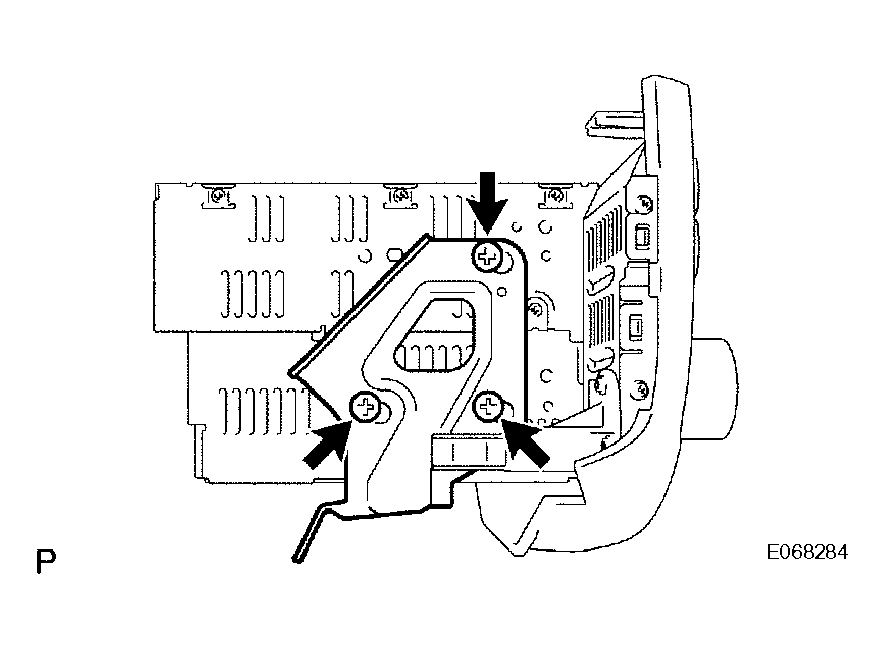

1. Install the No.2 radio bracket with the 3 bolts.

  Fig 1: Identifying No.2 Radio Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

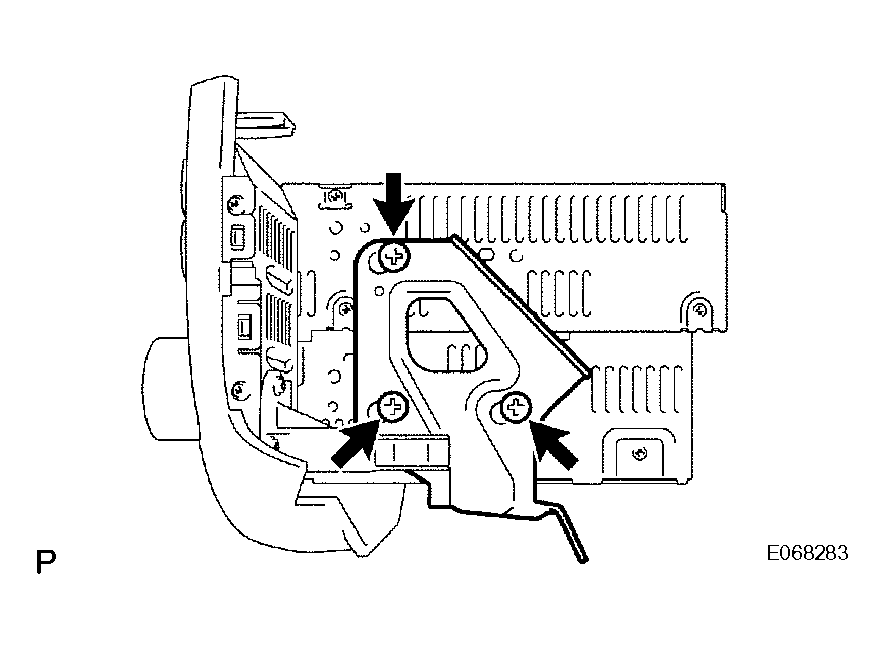

2. Install the No. 1 radio bracket with the 3 bolts.

  Fig 2: Identifying No.1 Radio Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the connectors.
4. Engage the 2 claws and the 2 clips.

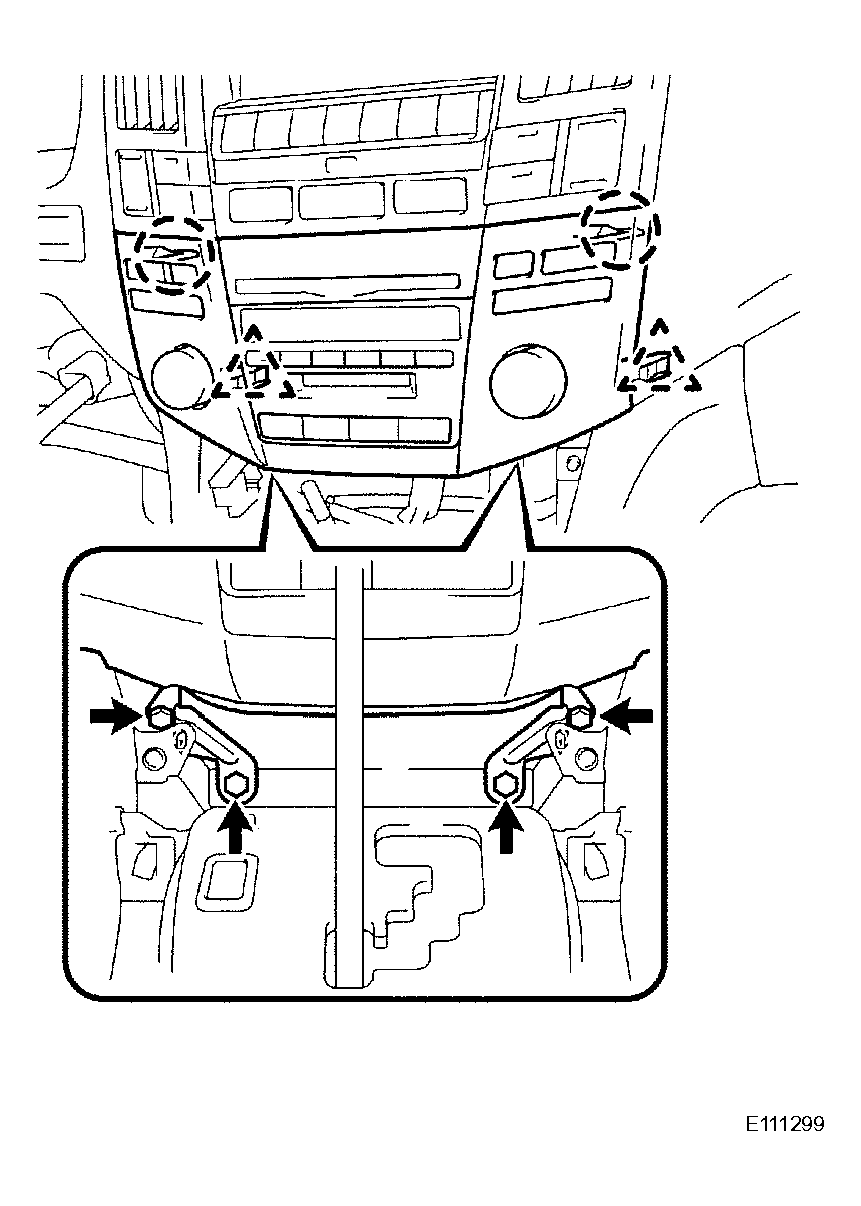

5. Install the radio receiver with bracket with the 4 bolts.

  Fig 3: Identifying Radio Receiver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL FINISH PANEL LOWER (See INSTALLATION )
INSTALL CONSOLE PANEL UPPER FRONT (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from negative battery terminal. (See INITIALIZATION )
