Microphone Amplifier: Components

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

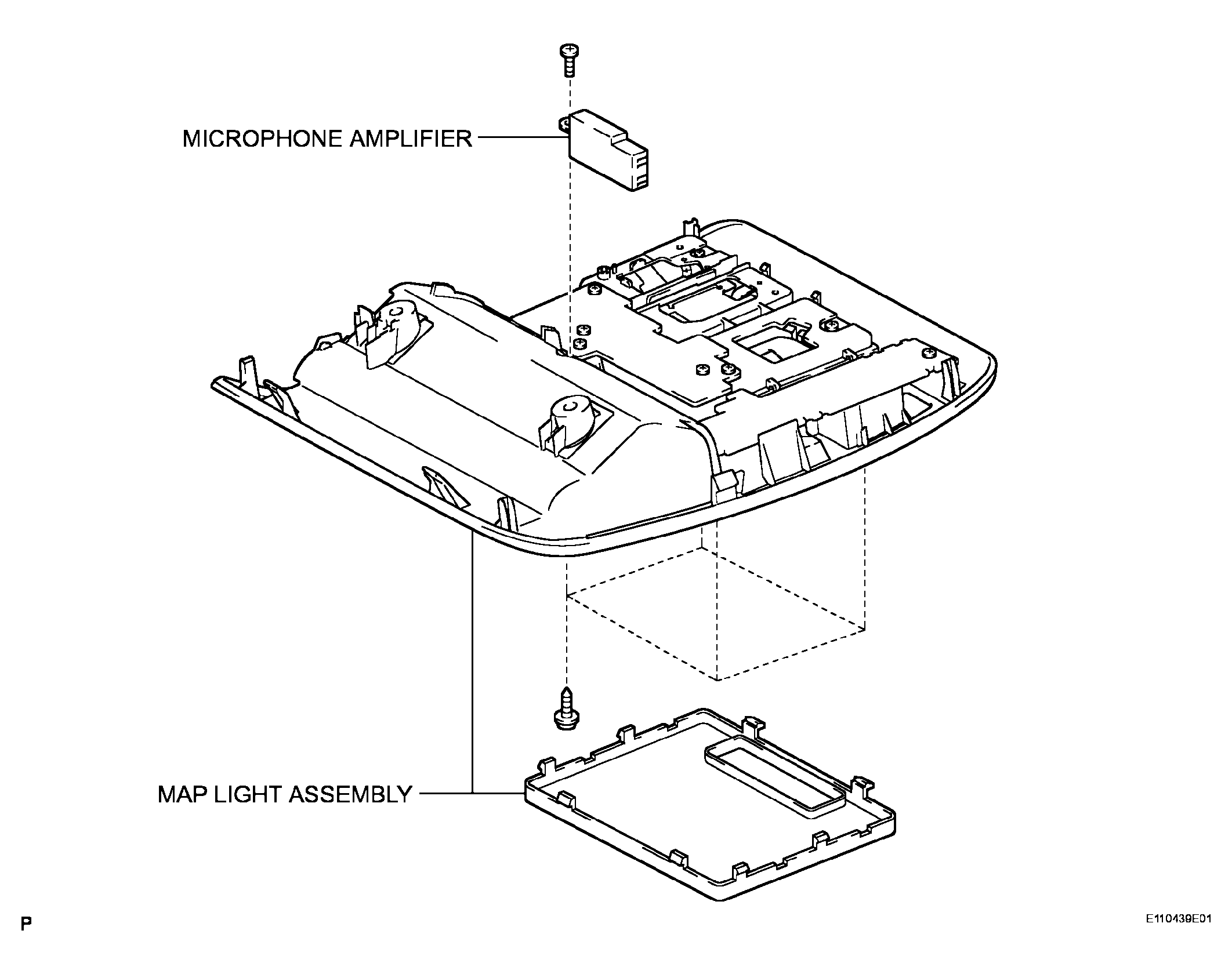

Fig 1: Exploded View Of Microphone Amplifier
G04115706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
