Rear Combination Light Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR COMBINATION LIGHT BULB
    1. Turn in the direction indicated by the arrow and separate the rear combination light bulb and the rear combination light socket and wire subassembly as a unit.
    2. Remove the rear combination light bulb from the rear combination light socket and wire subassembly.

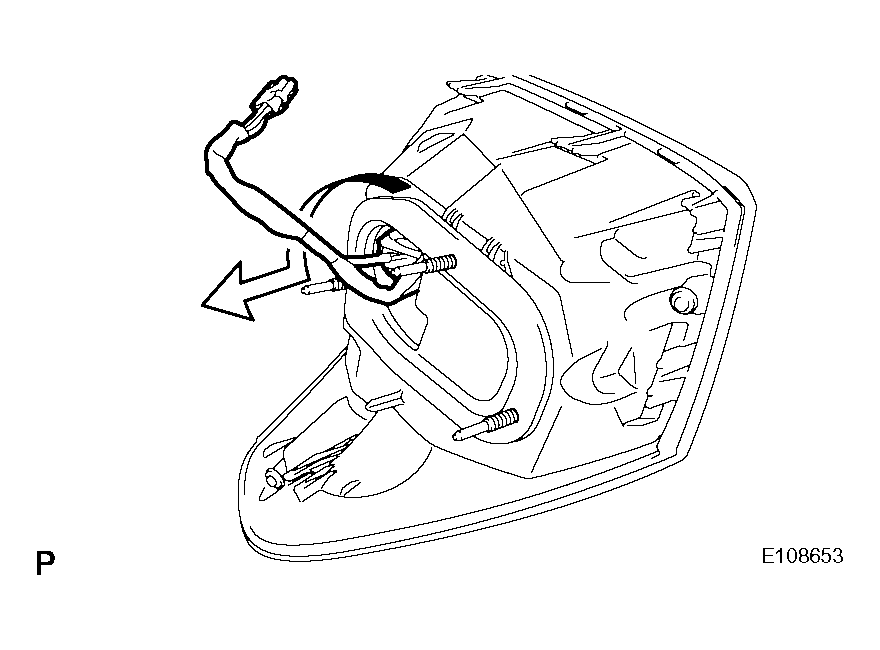

      Fig 1: Identifying Rear Combination Light Bulb
      G04115115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY
    1. Disconnect the connector and remove the rear combination light socket and wire sub-assembly.
      Fig 2: Identifying Rear Combination Light Socket And Wire Sub-Assembly
      G04115116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
