Back-Up Light Assembly: Removal

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE BACK DOOR TRIM PANEL ASSEMBLY UPPER (See  DISASSEMBLY  )
  2. REMOVE BACK-UP LIGHT ASSEMBLY
    1. Disconnect each connector.
    2. Remove the 3 nuts and disengage the clip, and remove the back-up light assembly.

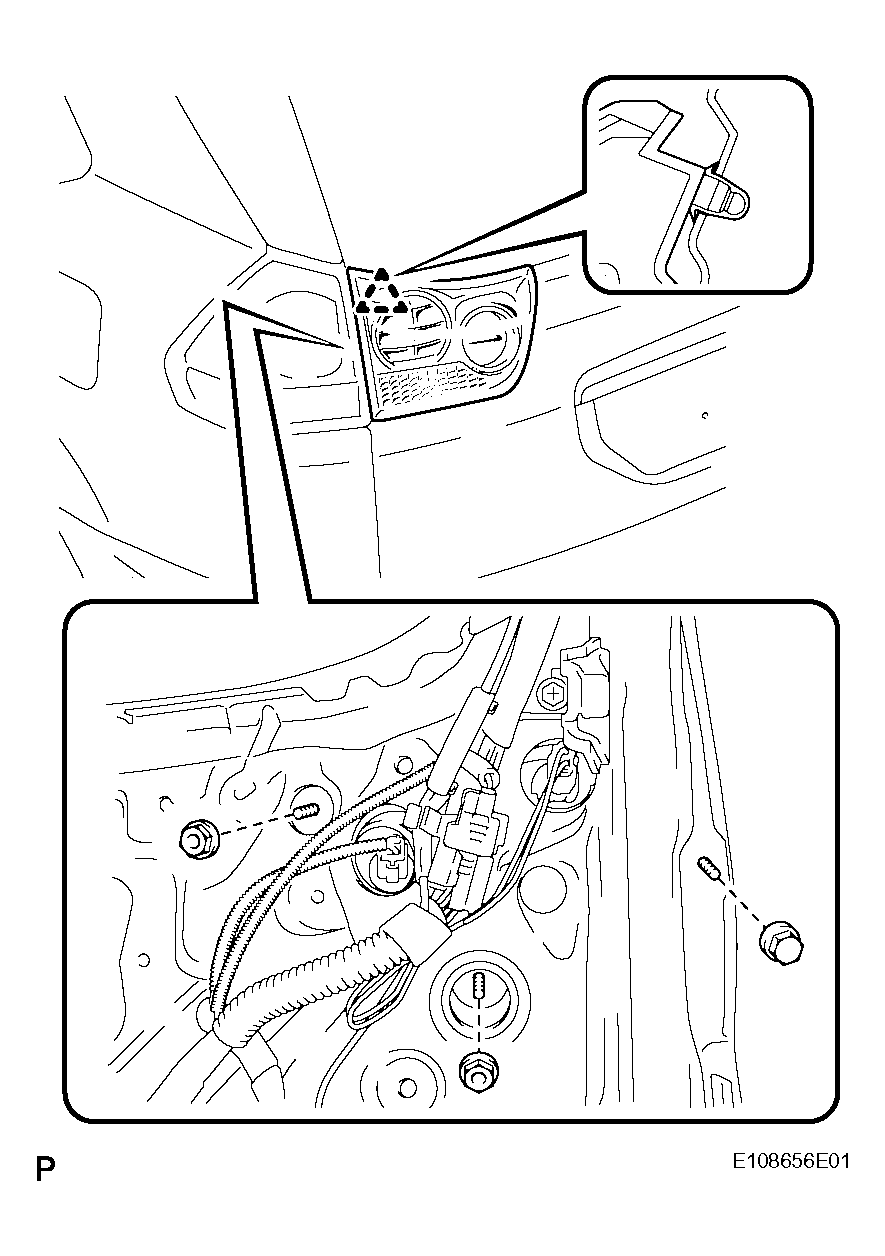

      Fig 1: Identifying Back-Up Light Assembly
      G04115120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
