Instrument Panel Speaker: Components

WARNING: This page is about a different car, the 2008 Toyota FJ Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

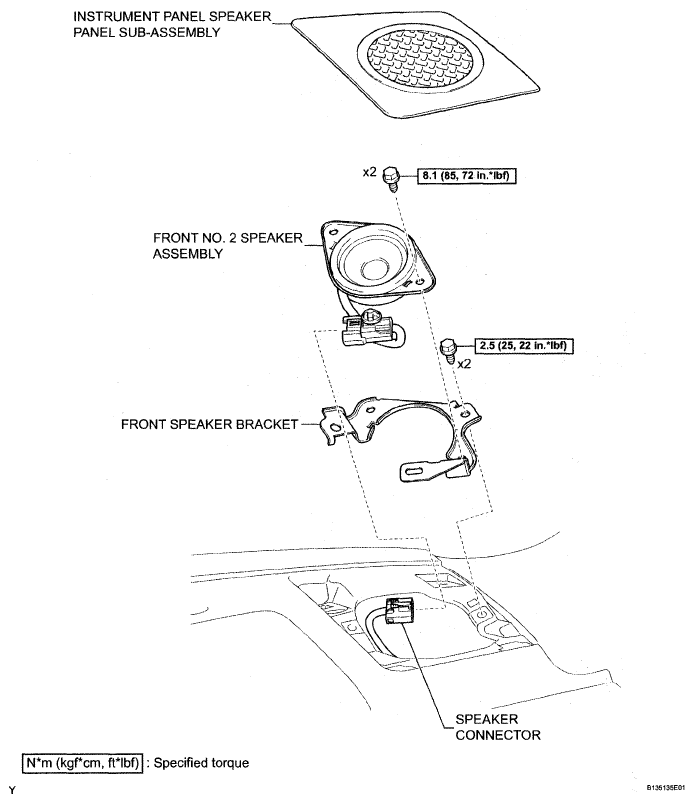

Fig 1: Instrument Panel Speaker Replacement Components With Torque Specifications
G05114086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
