Parking Brake Switch: Components

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Parking Brake Switch Components (1 Of 3)
G04832398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Parking Brake Switch Components (2 Of 3)
G04832399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

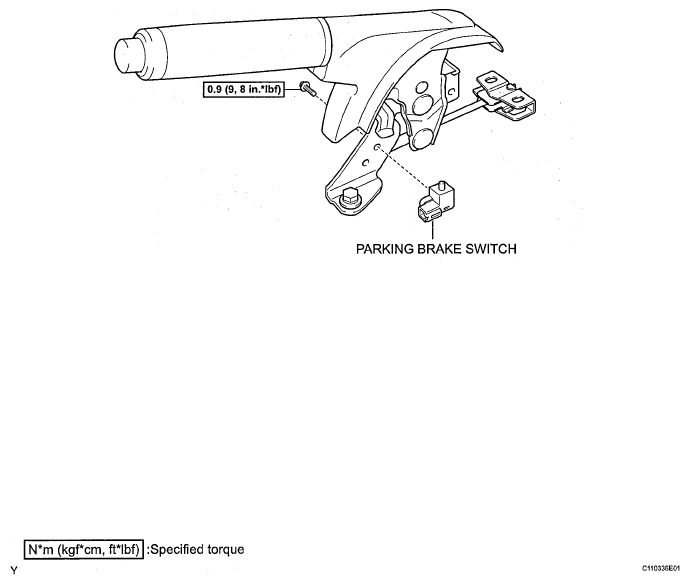

Fig 3: Parking Brake Switch Replacement Components (3 Of 3) With Torque Specifications
G04832438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
