Parts Location

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

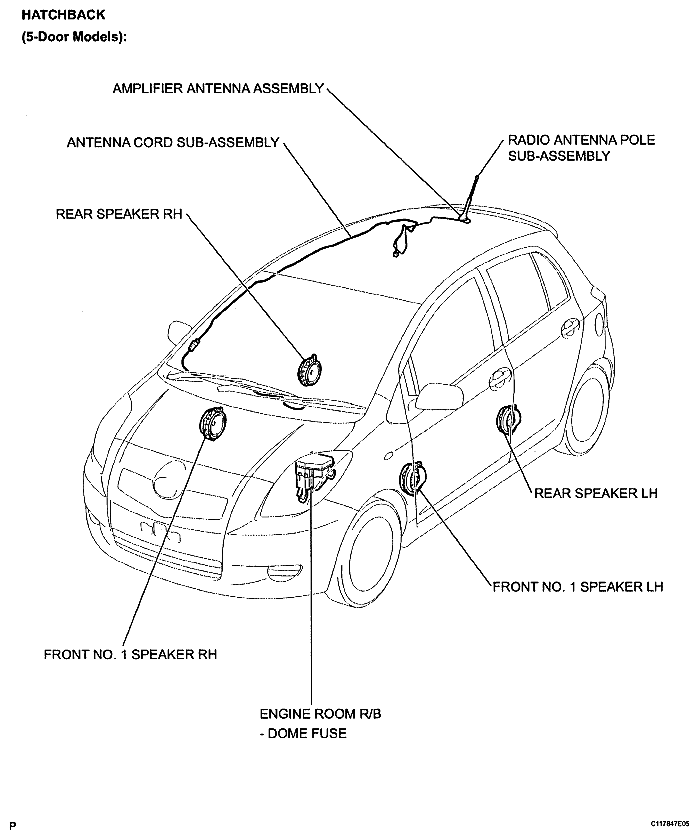

Fig 1: Identifying Audio And Visual System Components Location - Hatchback (5-Door Models)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

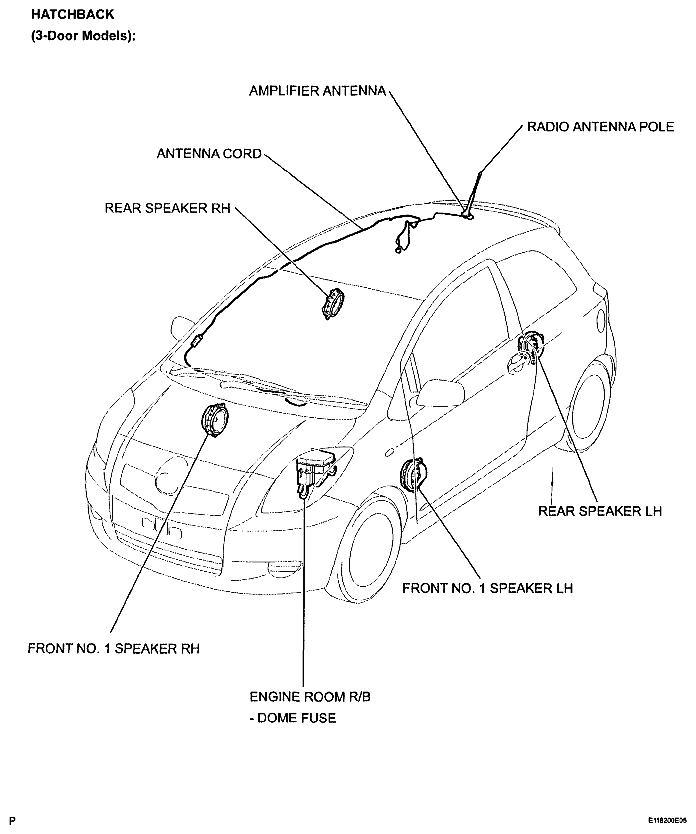

Fig 2: Identifying Audio And Visual System Components Location - Hatchback (3-Door Models)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

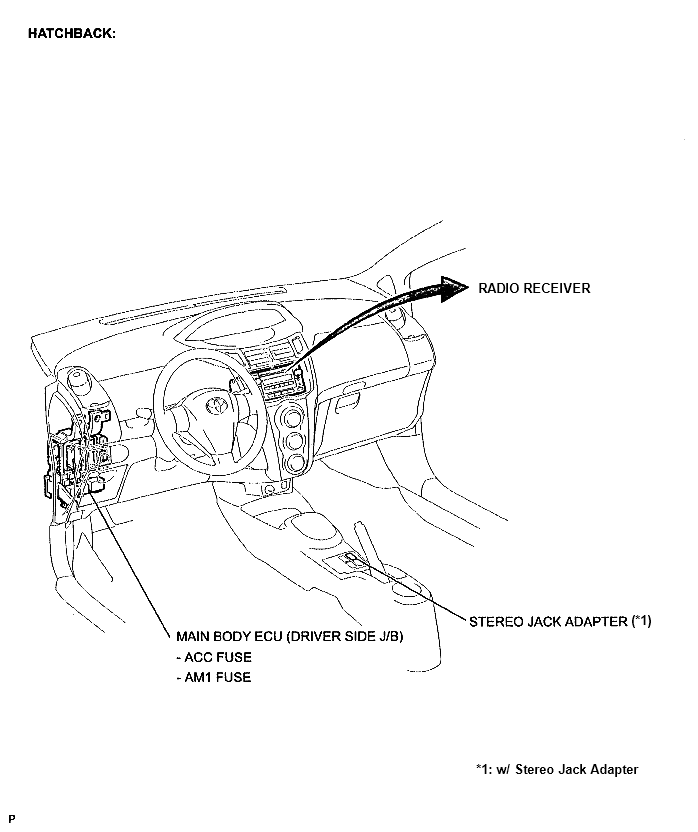

Fig 3: Identifying Audio And Visual System Components Location - Hatchback

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

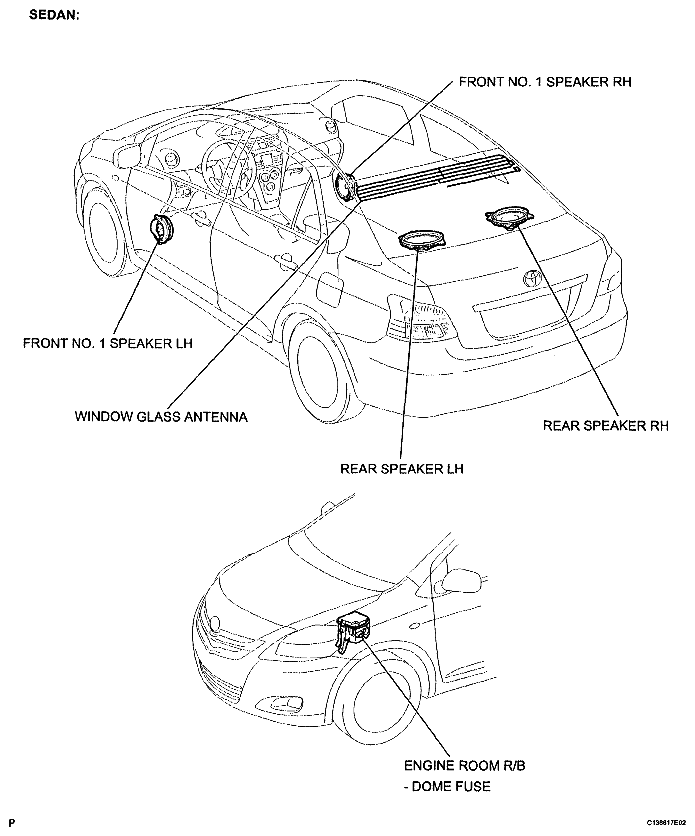

Fig 4: Identifying Audio And Visual System Components Location - Sedan

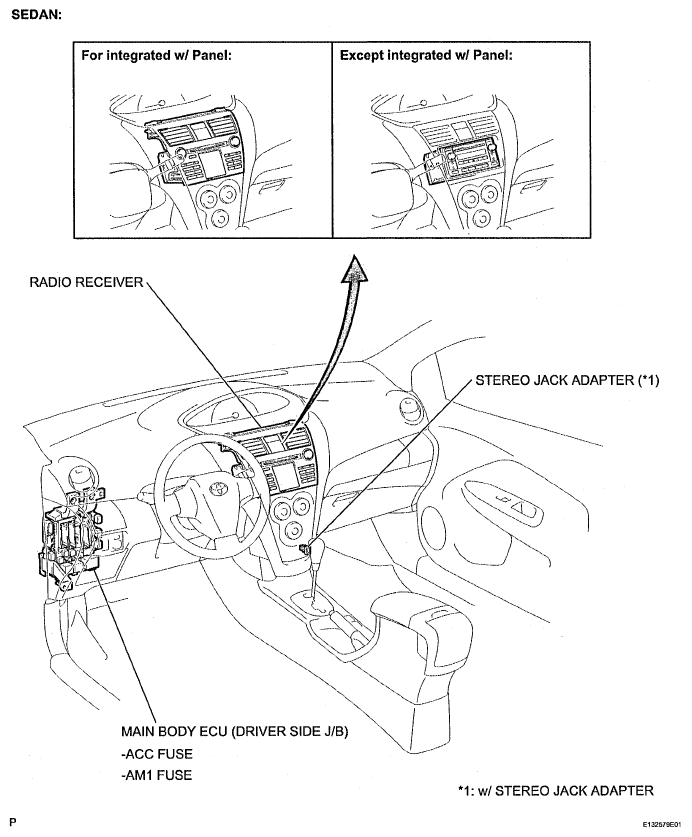

Fig 5: Identifying Audio And Visual System Components Location - Sedan
