Center Airbag Sensor Assembly: Components

WARNING: This page is about a different car, the 2006 Lexus RX 400h. However, it is still accessible from the selected car via links, so may be relevant.

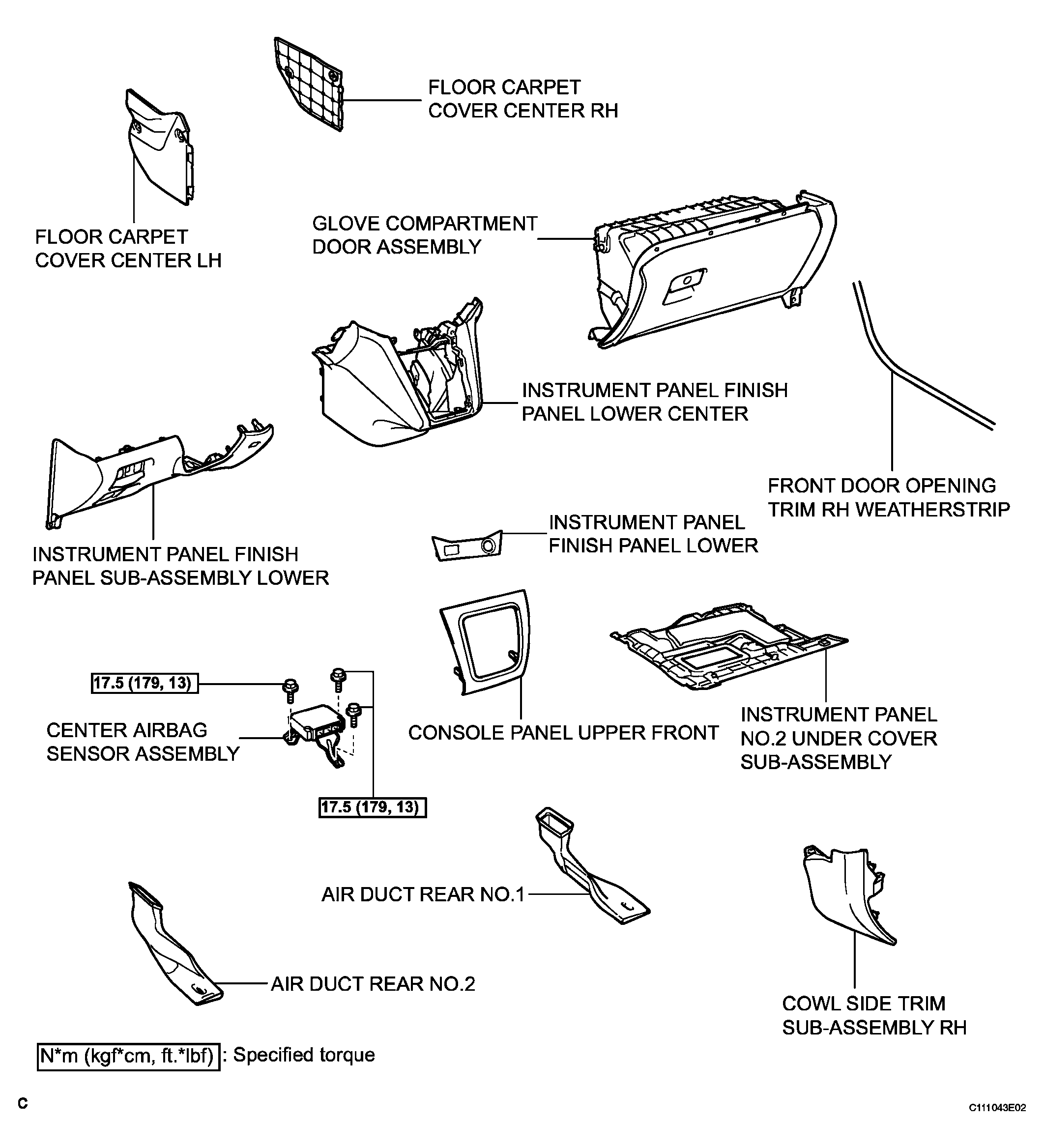

Fig 1: Center Airbag Sensor Assembly Replacement Components With Torque Specifications (1 Of 2)
G04114628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

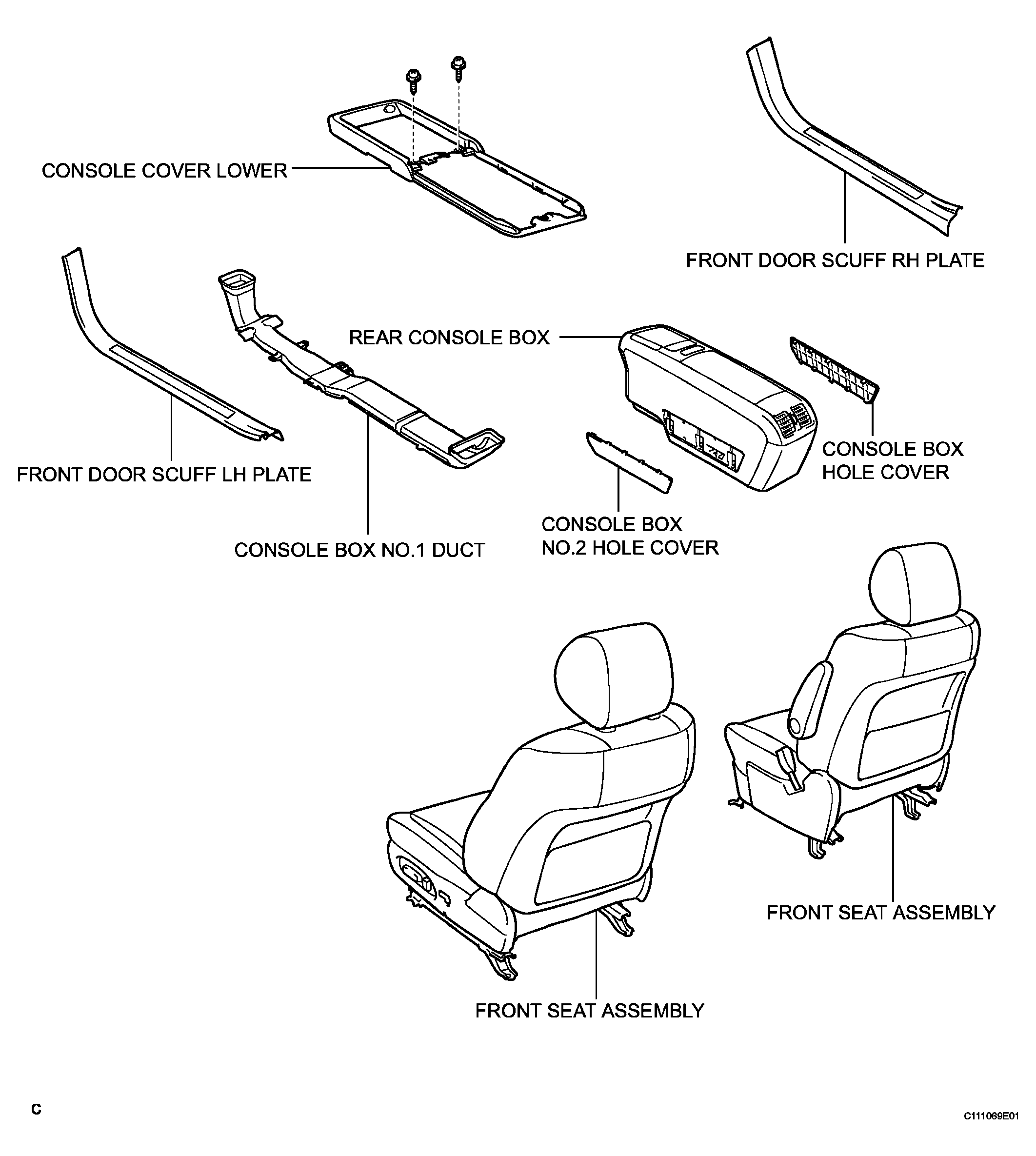

Fig 2: Identifying Center Airbag Sensor Assembly Components (2 Of 2)
G04114629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
