Room Light Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE ROOM LIGHT LENS
1. Using a screwdriver, detach the 4 claws and remove the lens.
  HINT:

  Tape the screwdriver tip before use.

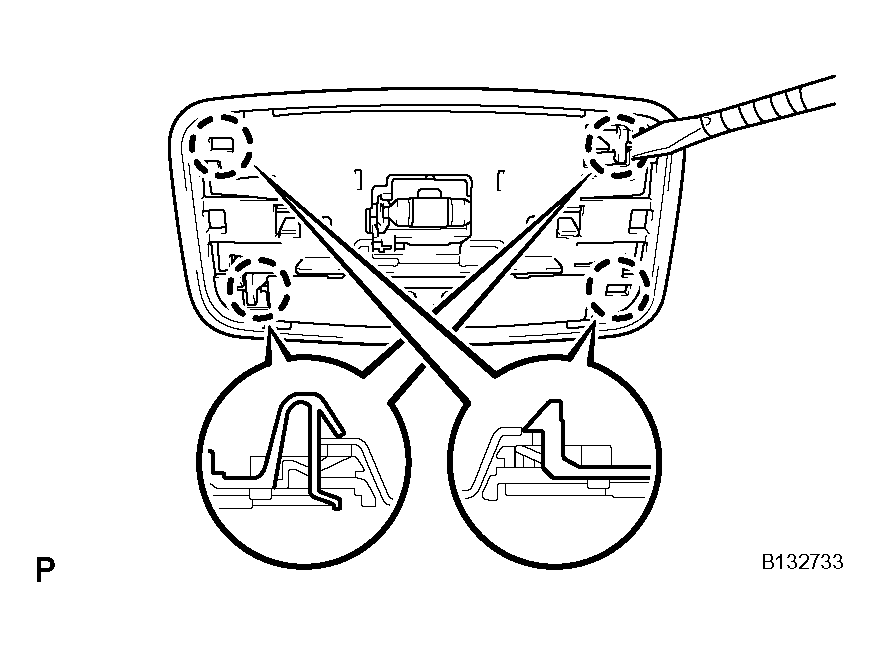

  Fig 1: Removing Room Light Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOM LIGHT ASSEMBLY
1. Using a screwdriver, detach the 4 claws and remove the 2 covers.
  HINT:

  Tape the screwdriver tip before use.

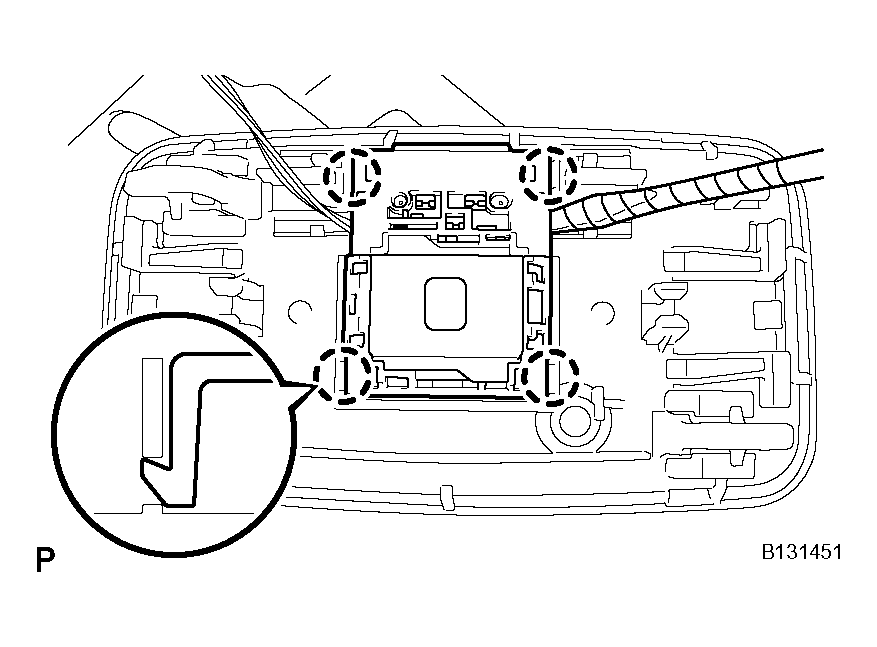

  Fig 2: Removing Room Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bulb from the room light switch base.

  Fig 3: Removing Bulb From Room Light Switch Base
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, detach the 4 claws and remove the light.
  HINT:

  Tape the screwdriver tip before use.

  Fig 4: Removing Room Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screwdriver, detach the 4 claws and remove the room light switch base.
  HINT:

  Tape the screwdriver tip before use.

  Fig 5: Removing Room Light Switch Base
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
