Rear Combination Light Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH sides.
The procedures listed below are for the LH side.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE REAR COMBINATION LIGHT ASSEMBLY
1. Remove the 3 nuts and disconnect the connector.

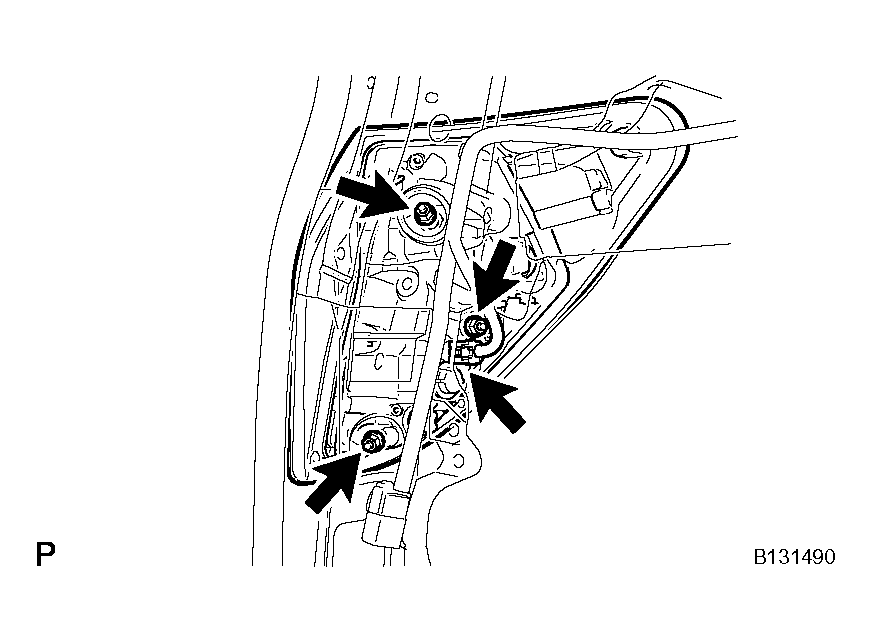

  Fig 1: Locating Nuts For Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Detach the clip and remove the light.

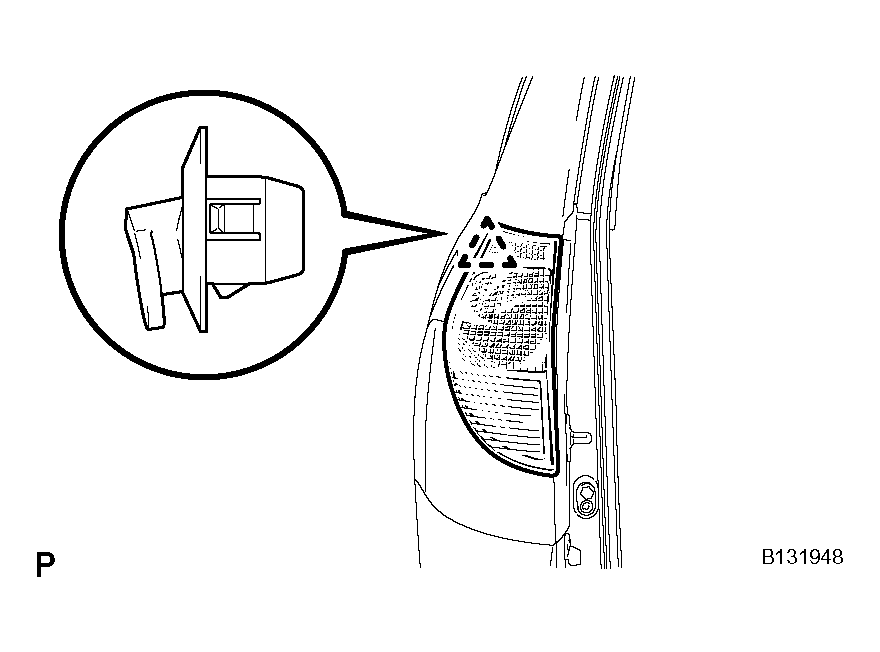

  Fig 2: Locating Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
