Headlight Dimmer Switch: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY
    1. Attach the claw to install the headlight dimmer switch with the claw as shown in the illustration.
      Fig 1: Installing Headlight Dimmer Switch With Claw
      G04490900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

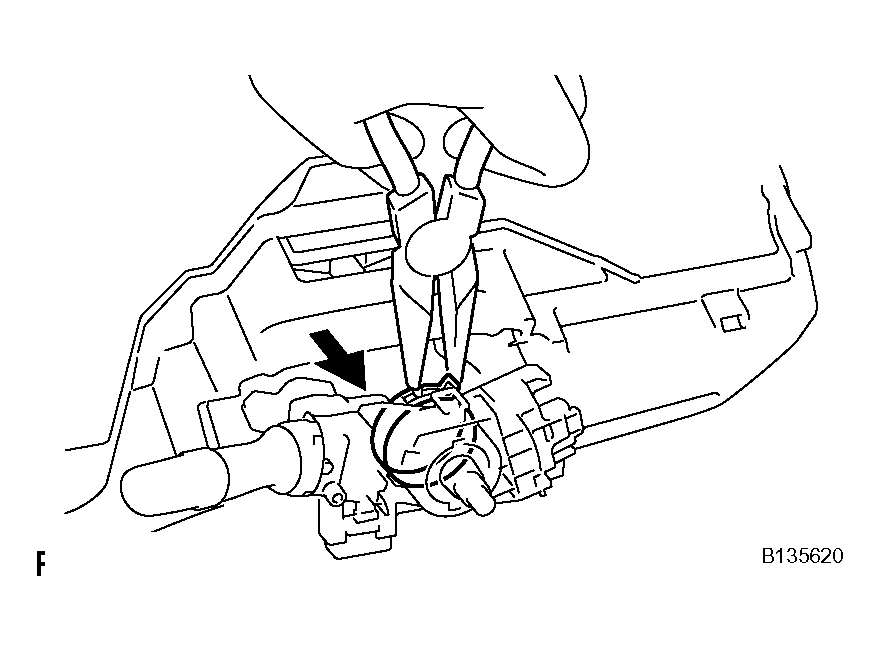

    2. Install the headlight dimmer switch with the clamp.
      Fig 2: Installing Headlight Dimmer Switch With Clamp
      G04490901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the connector.
  2. INSTALL WIPER AND WASHER SWITCH ASSEMBLY (See  INSTALLATION  )
  3. INSTALL SPIRAL CABLE SUB-ASSEMBLY (See  INSTALLATION  )
  4. INSTALL STEERING COLUMN COVER (See  INSTALLATION  )
  5. INSTALL STEERING WHEEL ASSEMBLY (See  INSTALLATION  )

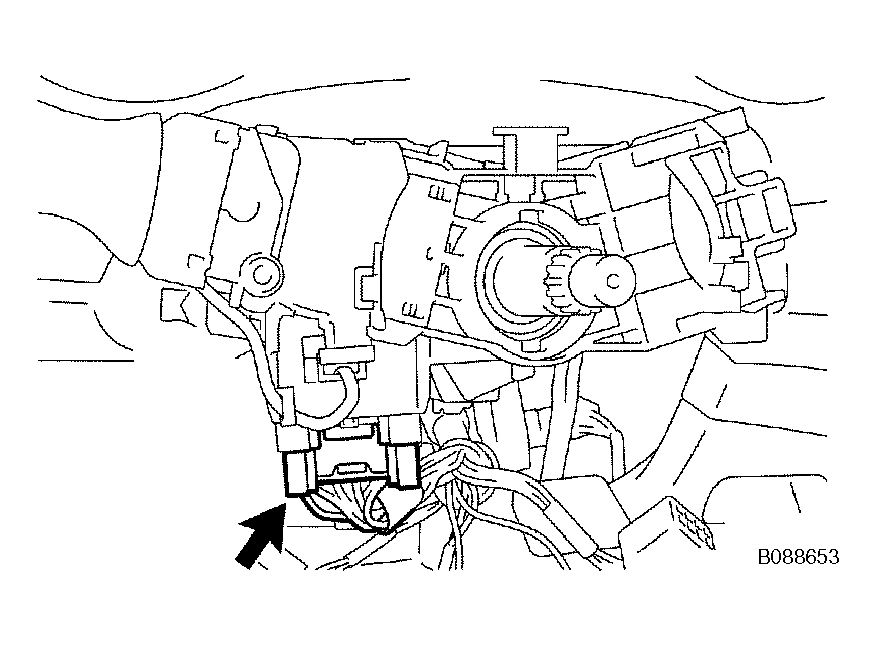

    Fig 3: Connecting Connector
    G04490902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  7. INSPECT STEERING WHEEL CENTER POINT
  8. INSTALL STEERING PAD ASSEMBLY (See  INSTALLATION  )
  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  10. INSPECT STEERING PAD ASSEMBLY (See  INSTALLATION  )
  11. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
