Headlight Assembly: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH sides.
The procedures listed below are for the LH side.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE FRONT FENDER LINER LH (See REMOVAL )
REMOVE FRONT FENDER LINER RH (See REMOVAL )
REMOVE RADIATOR SUPPORT OPENING COVER (See REMOVAL )
REMOVE FRONT BUMPER COVER (See REMOVAL )
REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY UPPER
1. Disconnect the 2 horn connectors.
2. Remove the 2 bolts and reinforcement.
REMOVE HEADLIGHT ASSEMBLY
1. Remove the 3 screws and bolt.
2. Disconnect the connectors and remove the headlight.

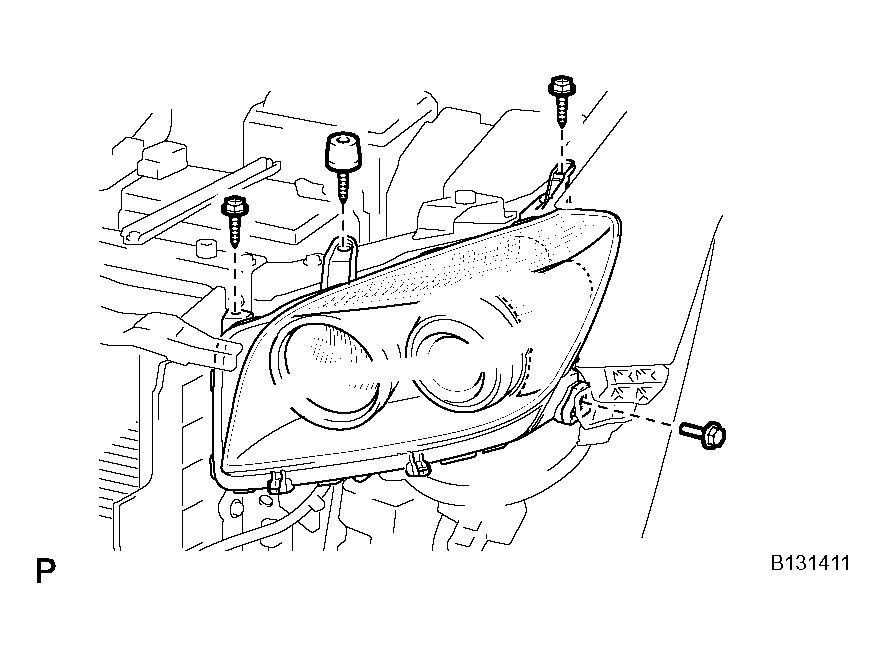

  Fig 1: Removing Headlight Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
