Front Door Courtesy Switch: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH and LH sides.
The procedures listed below are for the LH side.
A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

INSTALL FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY
1. Connect the connector.
2. Install the switch with the bolt.

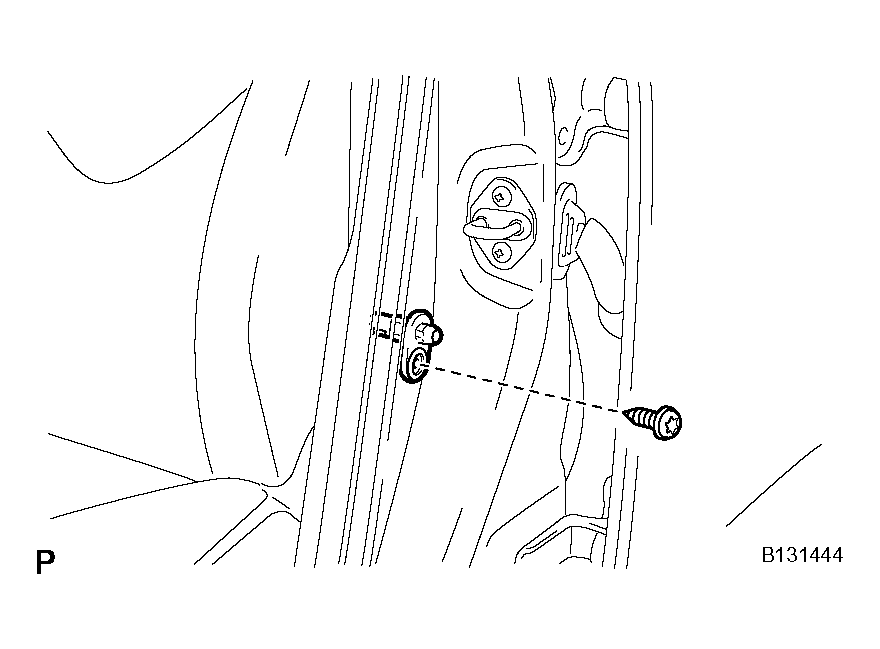

Fig 1: Installing Front Door Courtesy Light Switch With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
