Section 157 (Engine Cooling System (2AZ-FE)): Radiator: Components

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

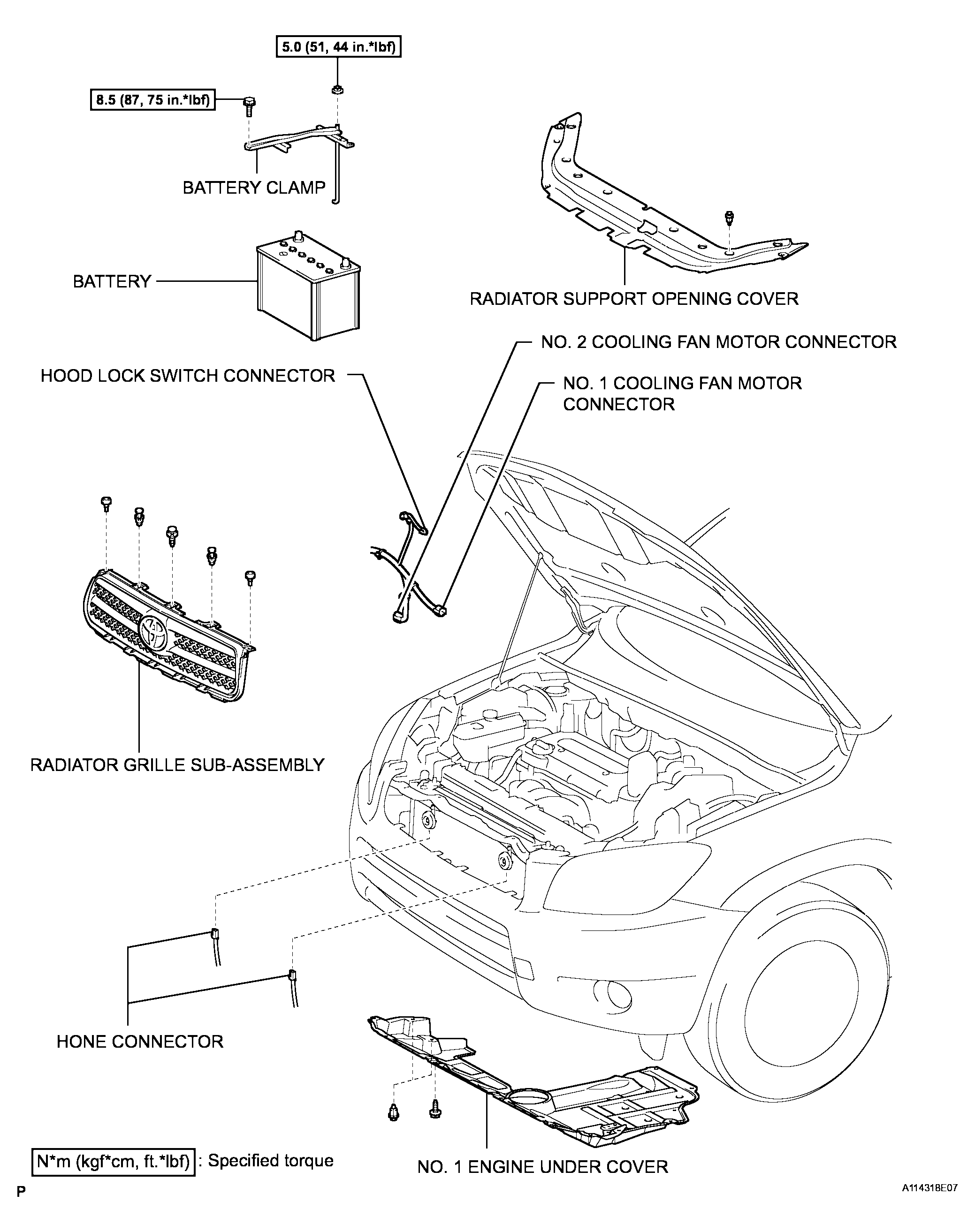

Fig 1: Radiator Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

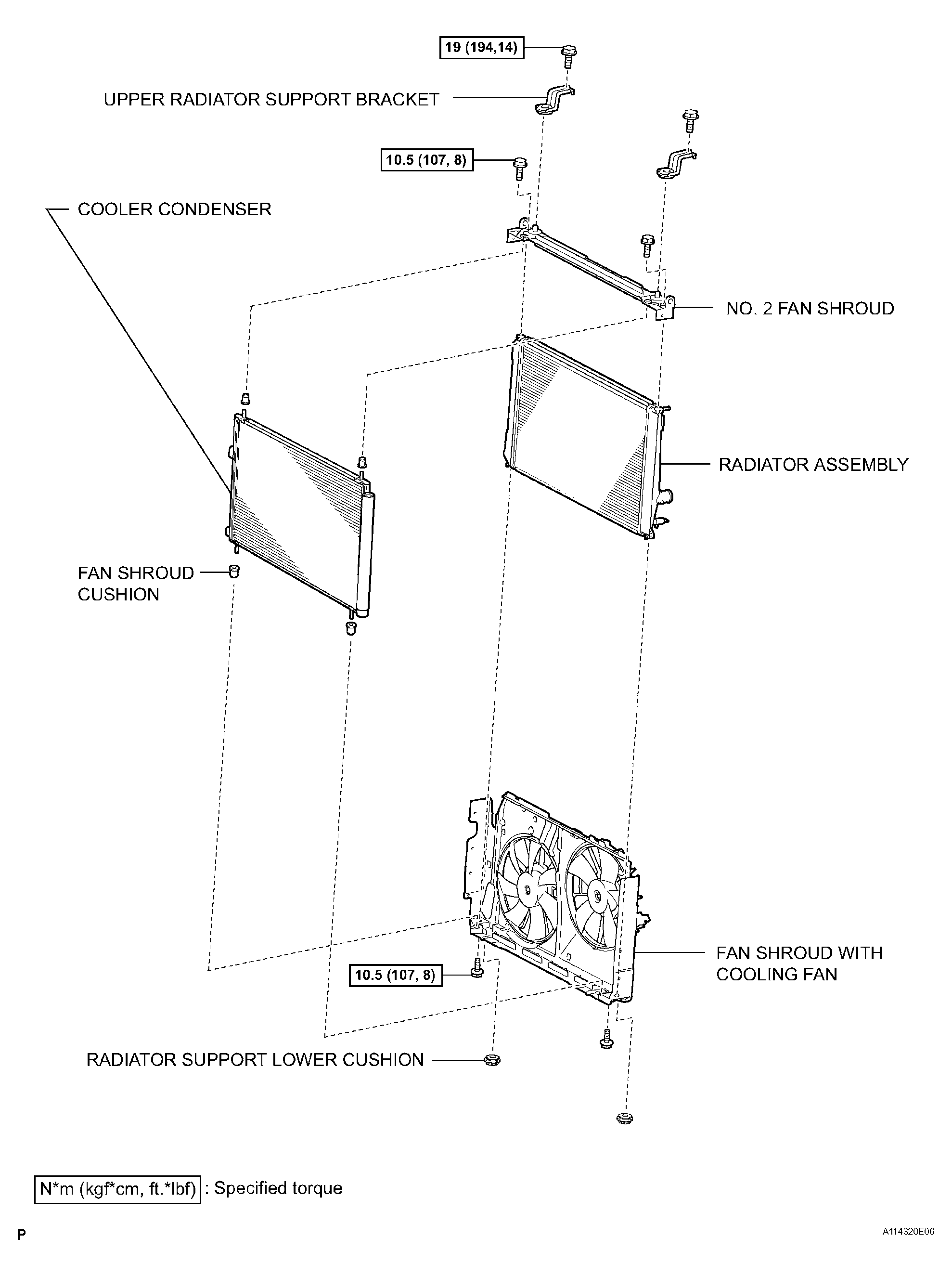

Fig 2: Radiator Replacement Components With Torque Specifications (2 Of 3)

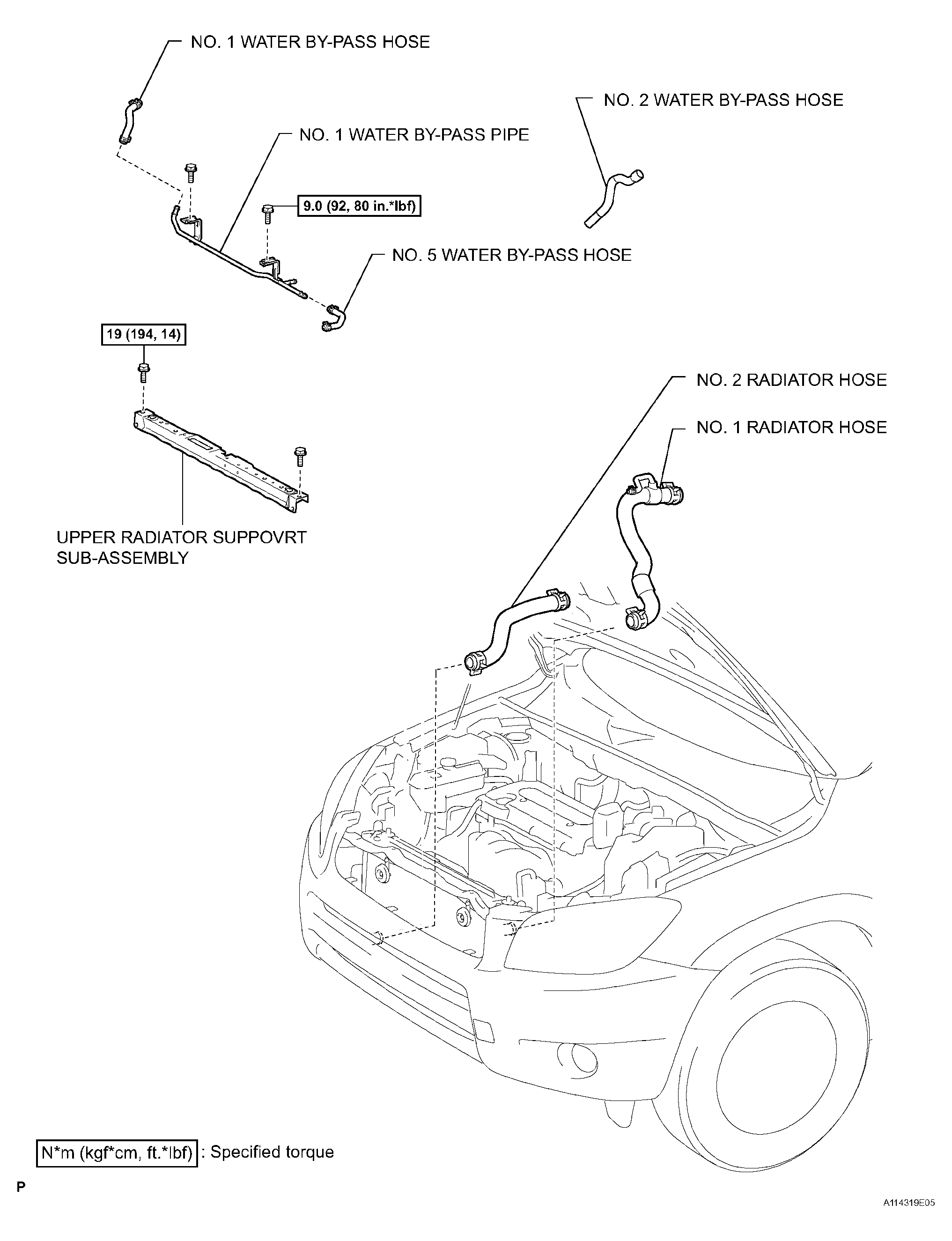

Fig 3: Radiator Replacement Components With Torque Specifications (3 Of 3)
