Front Axle Hub Bolt: Replacement

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are the LH side.

REMOVE FRONT WHEEL
REMOVE FRONT DISC BRAKE CYLINDER ASSEMBLY LH (See REMOVAL )
REMOVE FRONT DISC (See REMOVAL )
REMOVE FRONT AXLE HUB BOLT
1. Using SST, remove the hub bolt that needs to be replaced.
  SST 09650-17011

  Fig 1: Removing Hub Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT AXLE HUB BOLT
1. Insert a new hub bolt into the bolt hole. Set a plate washer and nut on the hub bolt end.
2. Using a brass bar or equivalent to hold the front axle, install the hub bolt by tightening the nut. Then remove the nut and plate washer.

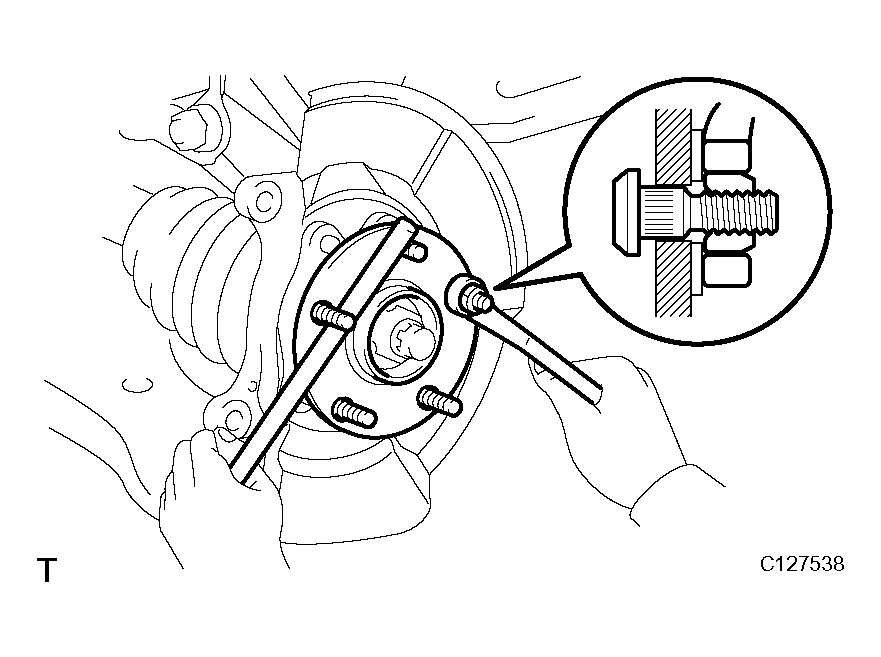

Fig 2: Installing Front Axle Hub Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DISC (See REASSEMBLY )
INSTALL FRONT DISC BRAKE CYLINDER ASSEMBLY LH (See REASSEMBLY )
INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf.cm, 76 ft.lbf)
