Fuel Lid Lock Control: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE FRONT SEAT ASSEMBLY LH
    1. Remove the front seat.

      for Manual Seat (see REMOVAL )

      for Power Seat (see REMOVAL )

  3. REMOVE FRONT SEAT ASSEMBLY RH
    1. Remove the front seat:

      For Manual Seat (see REMOVAL )

      For Power Seat (see REMOVAL )

  4. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
    1. Remove the rear No. 1 seat (see REMOVAL ).
  5. REMOVE REAR NO. 1 SEAT ASSEMBLY RH
    1. Remove the rear No. 1 seat (see REMOVAL ).
  6. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH (See appropriate step(s) under  REMOVAL  )
  7. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH (See appropriate step(s) under  REMOVAL  )
  8. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (See appropriate step(s) under  REMOVAL  )
  9. REMOVE SWITCH BASE (See appropriate step(s) under  REMOVAL  )
  10. REMOVE CONSOLE CUP HOLDER BOX (See appropriate step(s) under  REMOVAL  )
  11. REMOVE UPPER REAR CONSOLE PANEL SUBASSEMBLY (See appropriate step(s) under  REMOVAL  )
  12. REMOVE CONSOLE REAR END PANEL (See appropriate step(s) under  REMOVAL  )
  13. REMOVE NO. 1 INSTRUMENT PANEL BRACKET COVER INNER LH (See appropriate step(s) under  REMOVAL  )
  14. REMOVE NO. 1 INSTRUMENT PANEL BRACKET COVER INNER RH (See appropriate step(s) under  REMOVAL  )
  15. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY (See appropriate step(s) under  REMOVAL  )
  16. REMOVE FRONT DOOR SCUFF PLATE LH (See  REMOVAL
  17. REMOVE FRONT DOOR SCUFF PLATE RH (See  REMOVAL   )
  18. REMOVE COWL SIDE TRIM BOARD LH (See  REMOVAL   )
  19. REMOVE COWL SIDE TRIM BOARD RH (See  REMOVAL   )
  20. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH
  21. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  22. REMOVE REAR DOOR SCUFF PLATE LH (See  REMOVAL   )
  23. REMOVE REAR DOOR SCUFF PLATE RH (See  REMOVAL   )
  24. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  25. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
  26. REMOVE LOWER CENTER PILLAR GARNISH LH (See  REMOVAL   )
  27. REMOVE LOWER CENTER PILLAR GARNISH RH (See  REMOVAL   )
  28. REMOVE PACKAGE TRAY TRIM POCKET SUBASSEMBLY (w/o Rear No. 2 Seat)
  29. REMOVE TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat)
  30. REMOVE REAR FLOOR NO. 1 BOARD (w/o Rear No. 2 Seat)
  31. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
  32. REMOVE REAR NO. 2 SEAT ASSEMBLY LH (w/Rear No. 2 Seat)
    1. Remove the rear No. 2 seat (see REMOVAL ).
  33. REMOVE REAR NO. 2 SEAT ASSEMBLY RH (w/Rear No. 2 Seat)
    1. Remove the rear No. 2 seat (see REMOVAL ).
  34. REMOVE REAR FLOOR NO. 3 BOARD
  35. REMOVE REAR FLOOR NO. 2 BOARD
  36. REMOVE REAR FLOOR NO. 1 MAT SUPPORT SIDE PLATE (See  REMOVAL  )
  37. REMOVE BACK DOOR WEATHERSTRIP
  38. REMOVE REAR FLOOR FINISH PLATE (See  REMOVAL  )
  39. REMOVE REAR DECK TRIM COVER LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  40. REMOVE REAR DECK TRIM COVER LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  41. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL LH (w/o Rear No. 2 Seat) (See  REMOVAL  )
  42. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL RH (w/o Rear No. 2 Seat) (See  REMOVAL  )
  43. REMOVE TETHER ANCHOR BRACKET SUBASSEMBLY (w/o Rear No. 2 Seat) (See  REMOVAL  )
  44. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (w/o Rear No. 2 Seat) (See  REMOVAL  )
  45. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  46. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/o Rear No. 2 Seat) (See  REMOVAL  )
  47. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (w/Rear No. 2 Seat) (See  REMOVAL  )
  48. REMOVE FRONT FLOOR CARPET ASSEMBLY
    1. Partially remove the floor carpet.

      HINT:

      It is not necessary to fully remove the floor carpet. Partially remove it so that the lock control cable can be removed in a later step.

  49. REMOVE FUEL LID LOCK CONTROL CABLE SUBASSEMBLY
    1. Remove the bolt and fuel lid lock open lever.

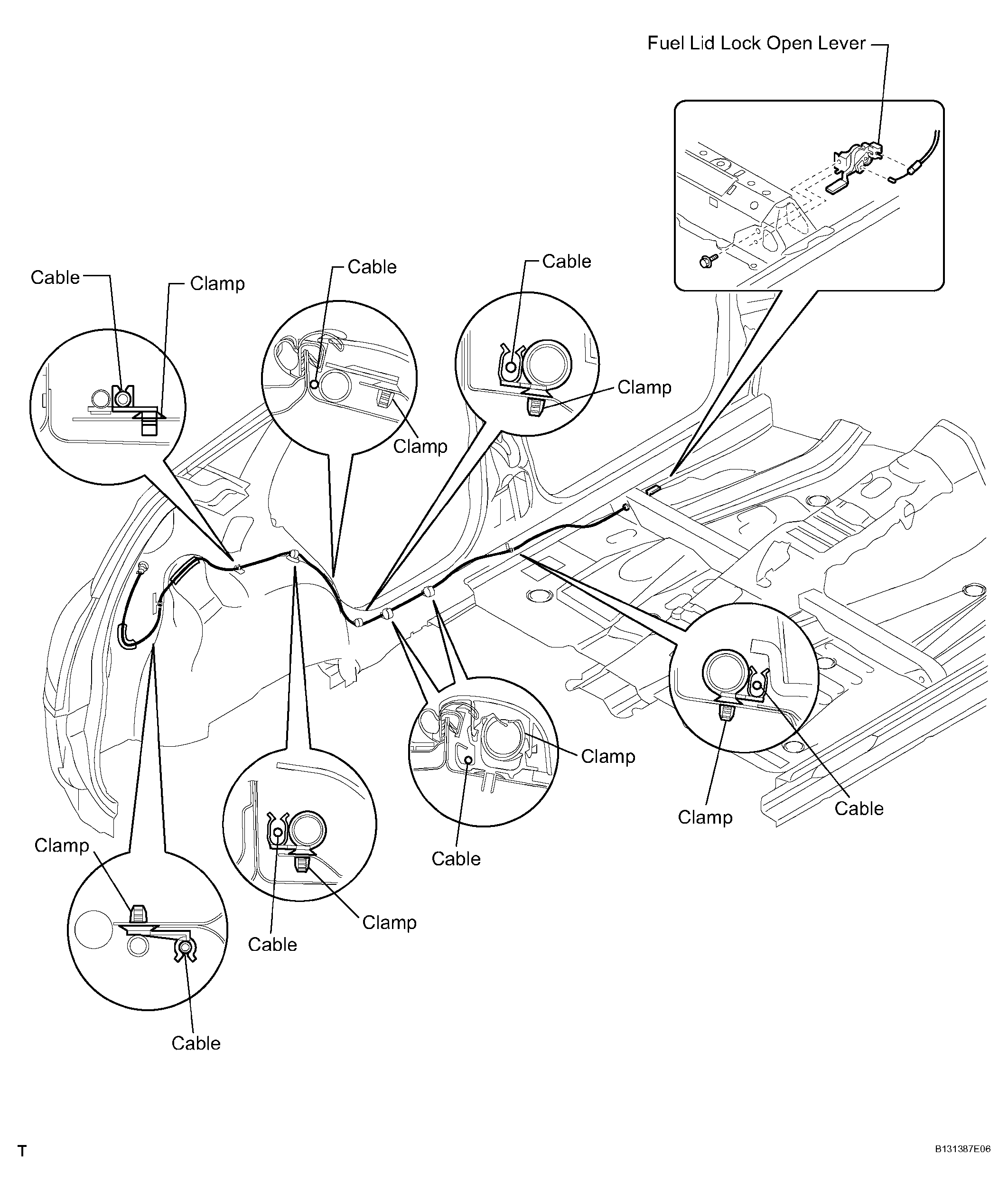

    2. Remove the tape and cable from the clamps as shown in the illustration.
      Fig 1: Removing Tape And Cable From Clamps
      G04492534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Turn the lock retainer counterclockwise and remove the cable from the retainer.
      Fig 2: Turning Lock Retainer Counterclockwise
      G04492535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. REMOVE FUEL FILLER OPENING LID LOCK RETAINER
    1. Turn the lock retainer clockwise and remove the lock retainer as shown in the illustration.
      Fig 3: Turning Lock Retainer Clockwise And Removing Lock Retainer
      G04492536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
