DTC P2A00 A/F Sensor Circuit Slow Response (Bank 1 Sensor 1); DTC P2A03 A/F Sensor Circuit Slow Response (Bank 2 Sensor 1): Description

The A/F sensor generates voltage* that corresponds to the actual air-fuel ratio. This sensor voltage is used to provide the ECM (Included in HV control ECU) with feedback so that it can control the air-fuel ratio. The ECM determines the deviation from the stoichiometric air-fuel ratio level, and regulates the fuel injection time. If the A/F sensor malfunctions, the ECM is unable to control the air-fuel ratio accurately. The A/F sensor is the planar type and is integrated with the heater, which heats the solid electrolyte (zirconia element). This heater is controlled by the ECM. When the intake air volume is low (the exhaust gas temperature is low), a current flows into the heater to heat the sensor, in order to facilitate accurate oxygen concentration detection. In addition, the sensor and heater portions are narrower than the conventional type. The heat generated by the heater is conducted to the solid electrolyte through the alumina, therefore the sensor activation is accelerated.

A three-way catalytic converter (TWC) is used in order to convert the carbon monoxide (CO), hydrocarbon (HC), and nitrogen oxides (NOx) into less harmful substances. To allow the TWC to function effectively, it is necessary to keep the air-fuel ratio of the engine near the stoichiometric air-fuel ratio.

*: Value changes inside the ECM. Since the A/F sensor is the current output element, a current is converted to a voltage inside the ECM. Any measurements taken at the A/F sensor or ECM connectors will show a constant voltage.

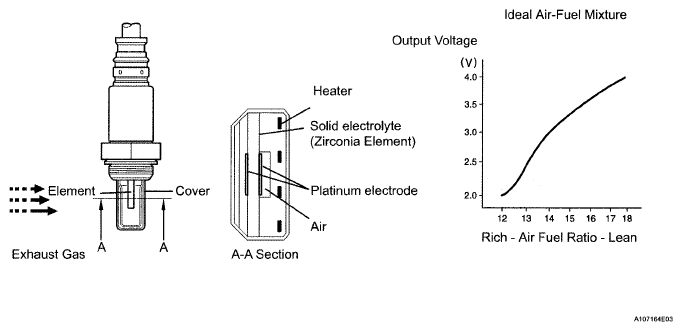

Fig 1: A/F Sensor Output Voltage Graph
G04942674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DTC DETECTION CONDITION CHART

DTC No. DTC Detection Condition Trouble Area
P2A00 P2A03 Air-Fuel Ratio (A/F) sensor circuit slow response:
Under conditions (a), (b) and (c), A/F sensor output voltage changing value below regular changing value in comparison with fuel trim changing value (2 trip detection logic):
  1. Warm engine
  2. Driving at engine speed of between 950 rpm and 2,500 rpm
  3. Vehicle speed between 37.5 mph and 75 mph (60 km/h and 120 km/h)
  • Open or short in A/F sensor (bank 1,2 sensor 1)
  • A/F sensor (bank 1, 2 sensor 1)
  • A/F sensor heater
  • A/F relay
  • Open or short in A/F sensor heater and relay circuits
  • Air induction system
  • Fuel pressure
  • Injector
  • PCV valve and hose
  • PCV hose connection
  • HV control ECU
