Water Pump: Components

Fig 1: Water Pump Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

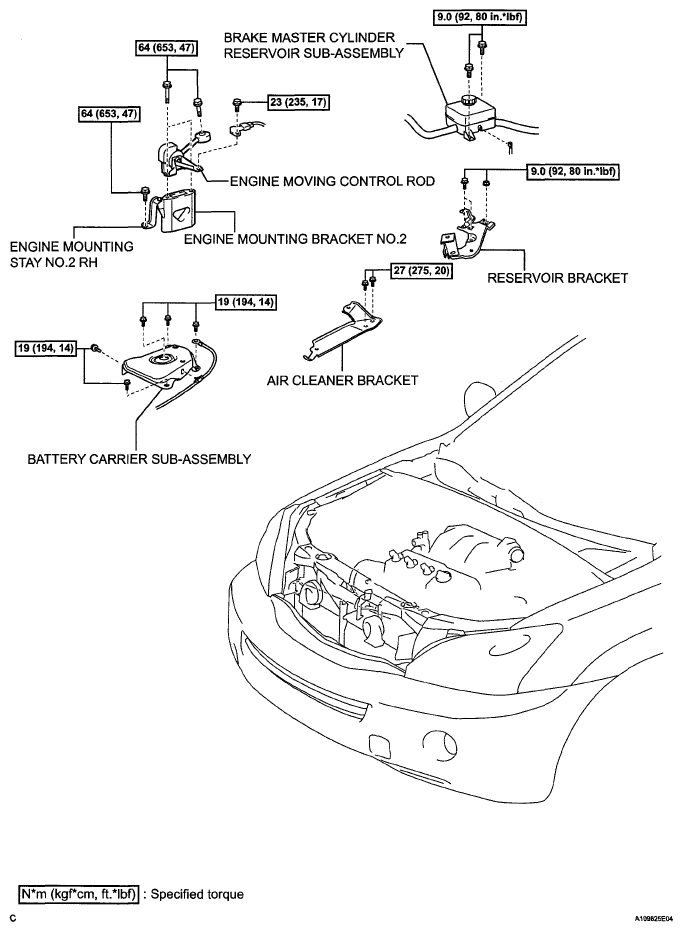

Fig 2: Water Pump Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

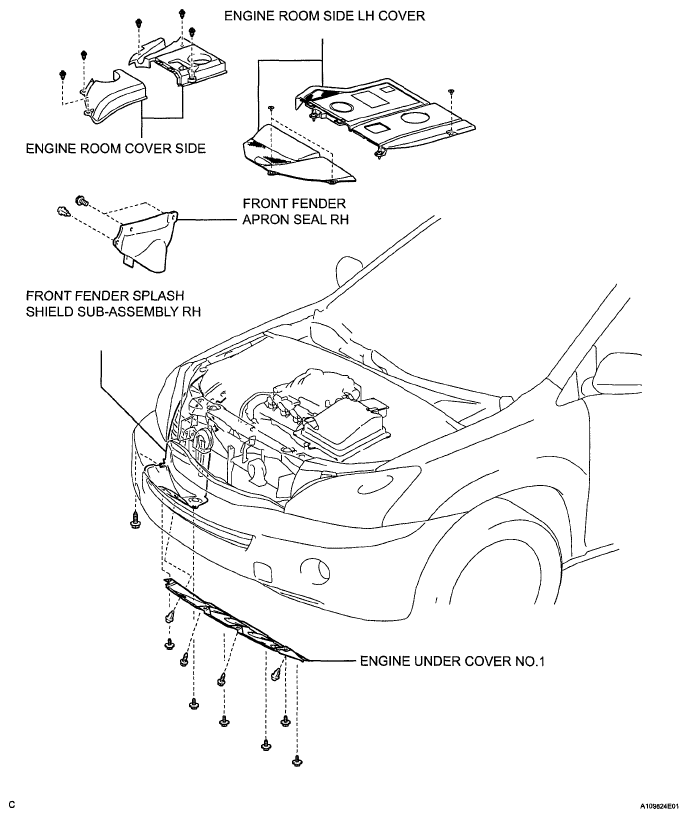

Fig 3: Water Pump Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

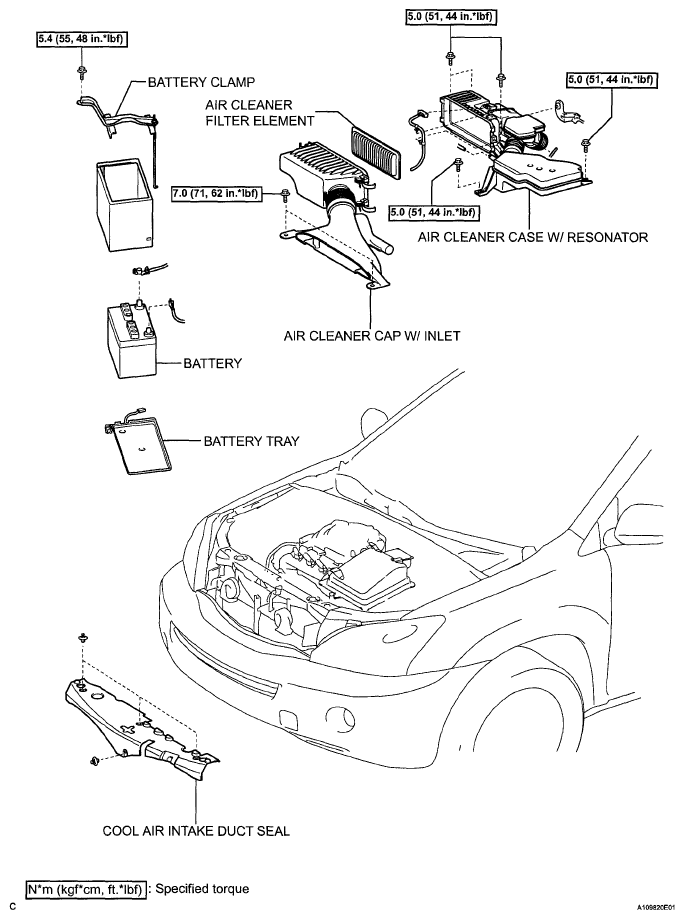

Fig 4: Water Pump Replacement Components With Torque Specifications (4 Of 6)

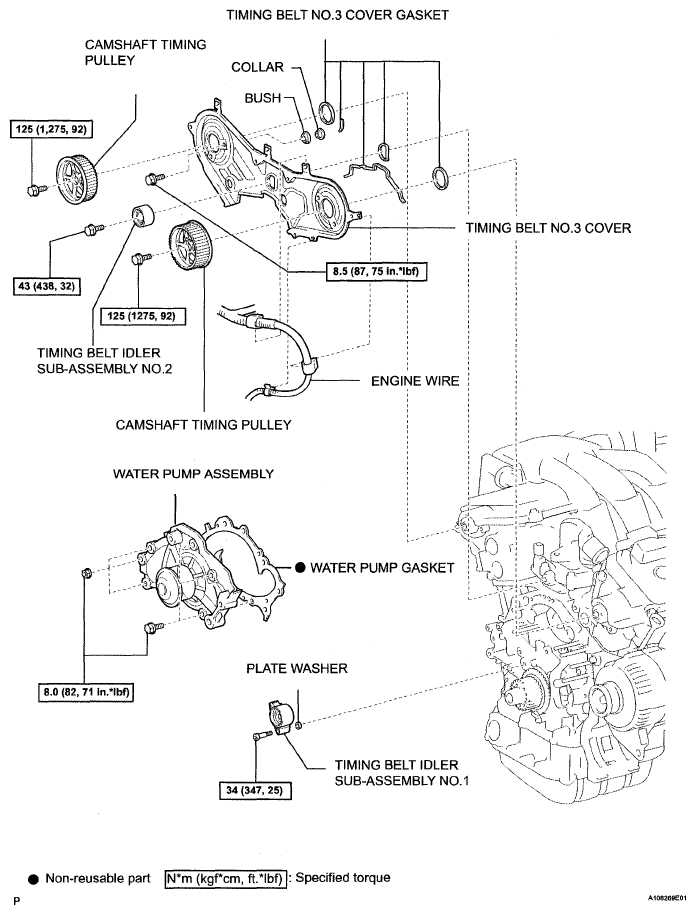

Fig 5: Water Pump Replacement Components With Torque Specifications (5 Of 6)

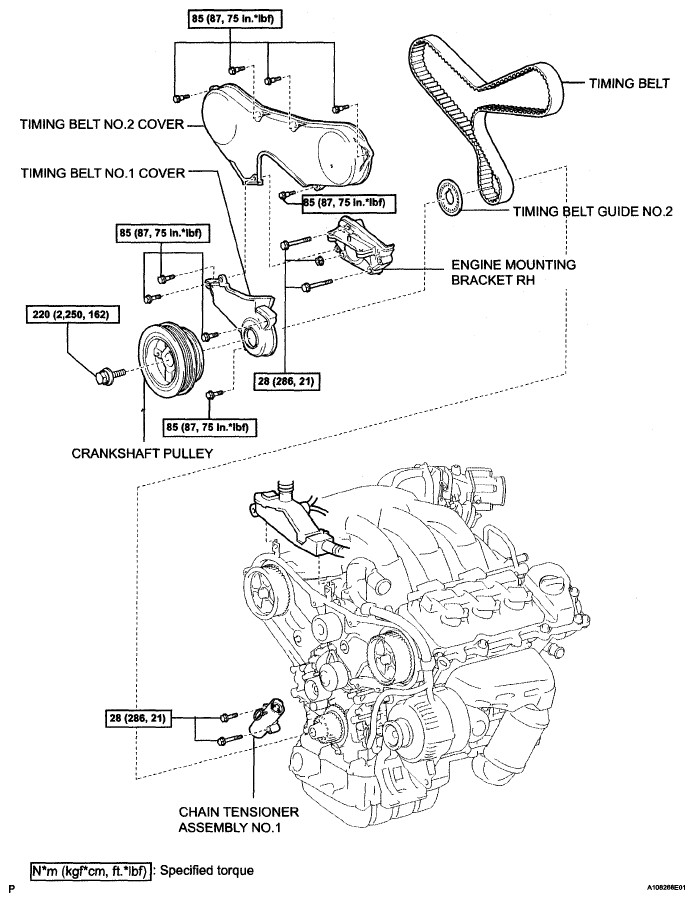

Fig 6: Water Pump Replacement Components With Torque Specifications (6 Of 6)
