Rear Power Point Socket: Removal

  1. REMOVE REAR DOOR SCUFF PLATE LH  (See REMOVAL )
  2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  3. REMOVE DECK BOARD SUB-ASSEMBLY  (See REMOVAL )
  4. REMOVE TONNEAU COVER ASSEMBLY
  5. REMOVE JACK CARRIER SUPPORT
  6. REMOVE JACK ASSEMBLY
  7. REMOVE JACK CARRIER ASSEMBLY
  8. REMOVE DECK FLOOR BOX FRONT  (See REMOVAL )
  9. REMOVE DECK FLOOR BOX REAR  (See REMOVAL )
  10. REMOVE NO.2 DECK BOARD SUB-ASSEMBLY  (See REMOVAL )
  11. REMOVE NO.3 DECK BOARD SUB-ASSEMBLY  (See REMOVAL )
  12. REMOVE BACK DOOR WEATHERSTRIP
  13. REMOVE DECK SIDE TRIM BOX LH  (See REMOVAL )
  14. REMOVE DECK SIDE TRIM BOX RH
  15. REMOVE REAR FLOOR FINISH PLATE  (See REMOVAL )
  16. REMOVE REAR FLOOR FINISH SIDE PLATE LH  (See REMOVAL )
  17. REMOVE DECK SIDE TRIM COVER LH  (See REMOVAL )
  18. SEPARATE REAR NO.1 SEAT OUTER BELT ASSEMBLY LH  (See REMOVAL )
  19. REMOVE REAR SEAT SIDE COVER LH  (See REMOVAL )
  20. REMOVE ROPE HOOK  (See REMOVAL )
  21. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH  (See REMOVAL )
  22. REMOVE NO.2 ROOM LIGHT ASSEMBLY  (See REMOVAL )
  23. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH  (See REMOVAL )
  24. REMOVE REAR POWER POINT SOCKET
    1. Turn the rear power point socket in counterclockwise as shown in the illustration and disengage the claw between the rear power point socket and the power point socket cover.
    2. Push out the rear power point socket.
      Fig 1: Locating Rear Power Point Socket
      G05274224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

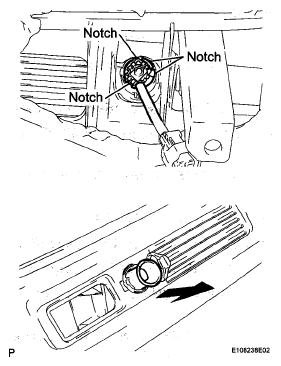

    3. Align the rear power point socket with the notch on the power point socket cover, and remove the rear power point socket.
    Fig 2: Removing Rear Power Point Socket
    G05274225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE POWER OUTLET SOCKET COVER REAR
    1. Disengage the 2 claws, and remove the power outlet socket cover rear.
    Fig 3: Identifying Power Outlet Socket Cover Rear Claws
    G05274226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
