SKID CONTROL SENSOR (for 2WD): Components

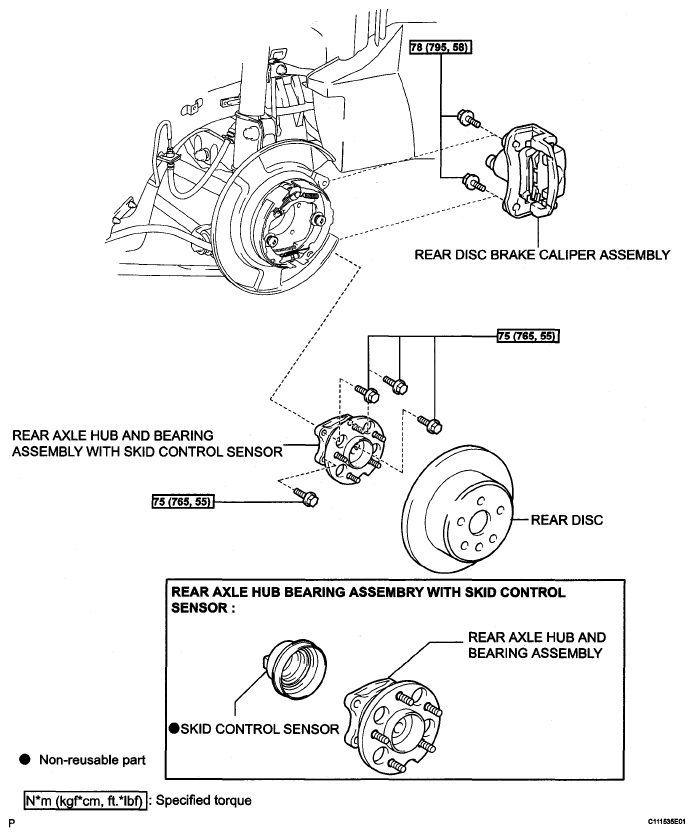

Fig 1: Skid Control Sensor (For 2WD) Replacement Components With Torque Specifications

G05276976

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
