System Diagram

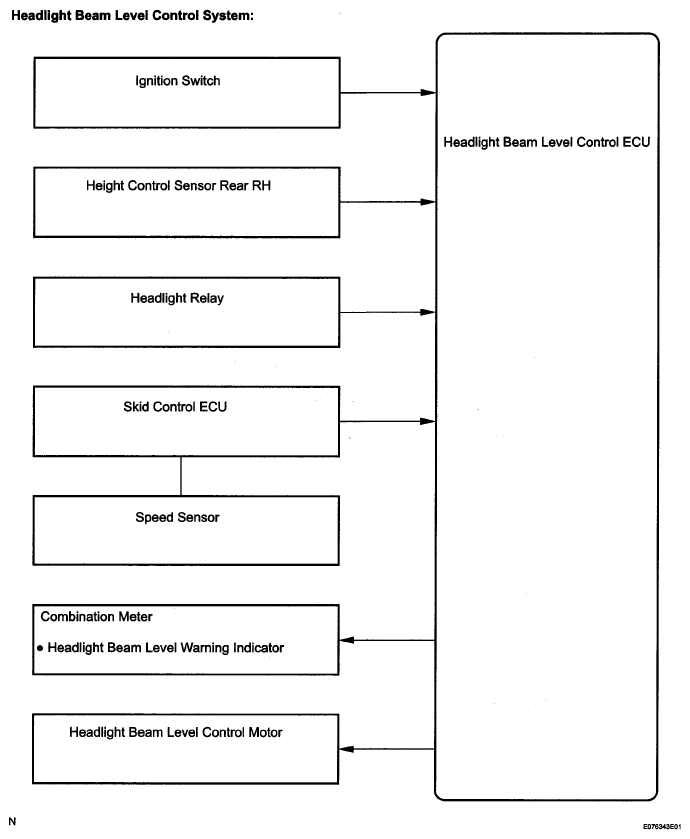

Fig 1: Headlight Beam Level Control System Diagram
G05279979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

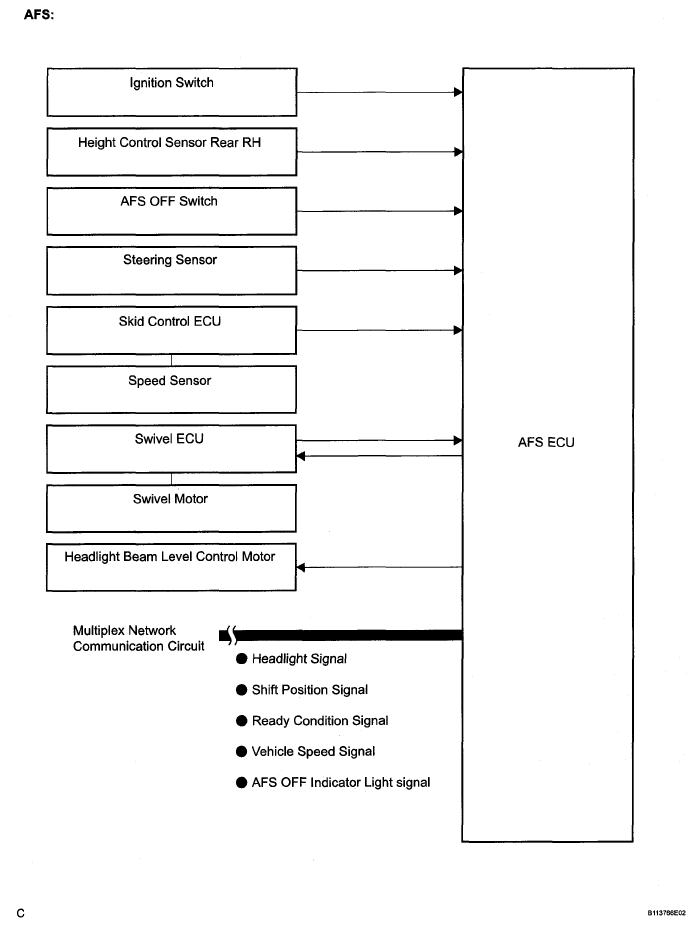

Fig 2: AFS System Diagram
G05279980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

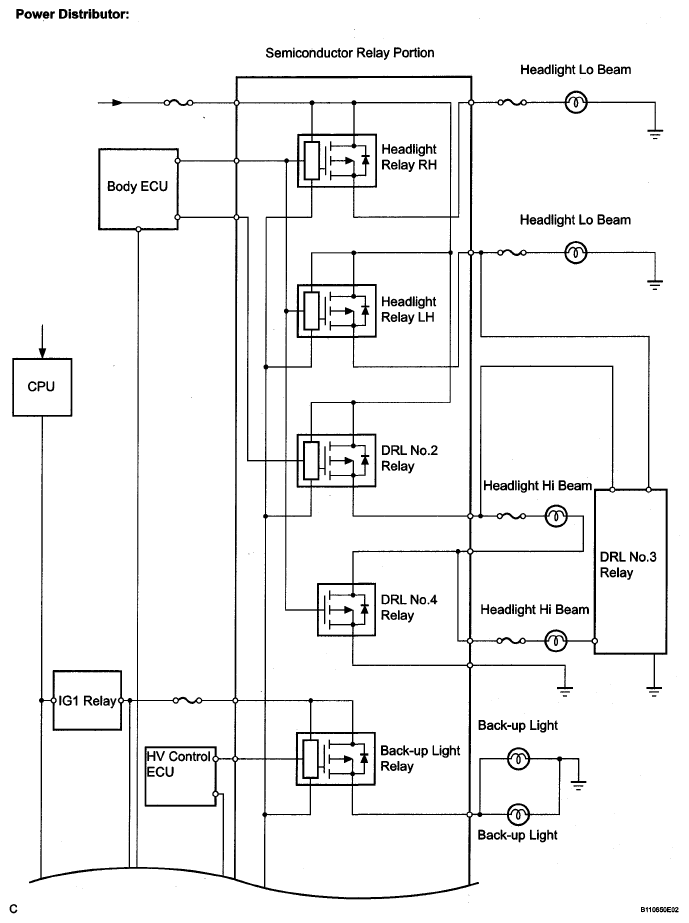

Fig 3: Power Distribution System Diagram (1 Of 2)
G05279981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

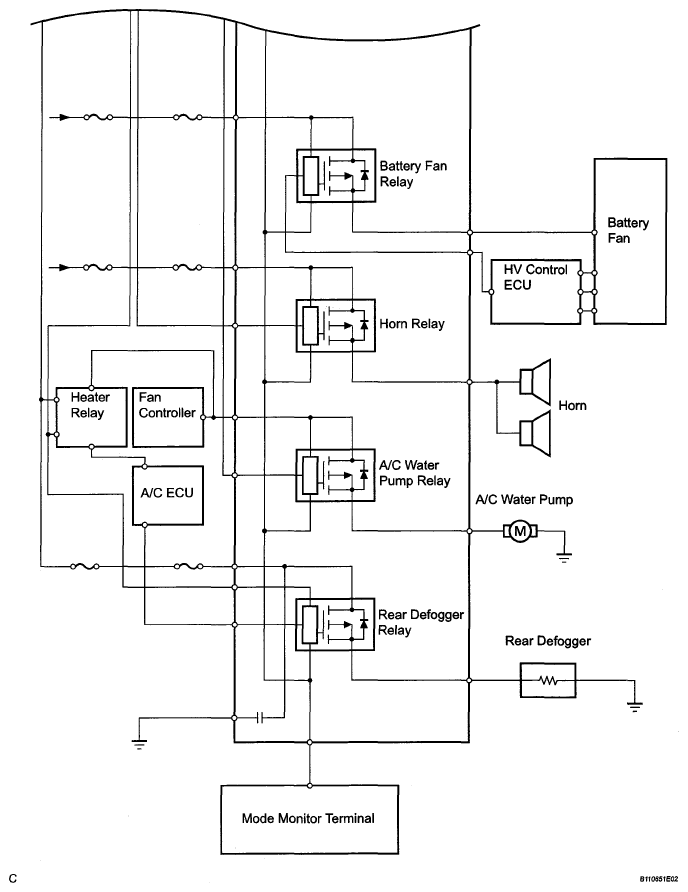

Fig 4: Power Distribution System Diagram (2 Of 2)
G05279982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
