Headlight Leveling Ecu: Components

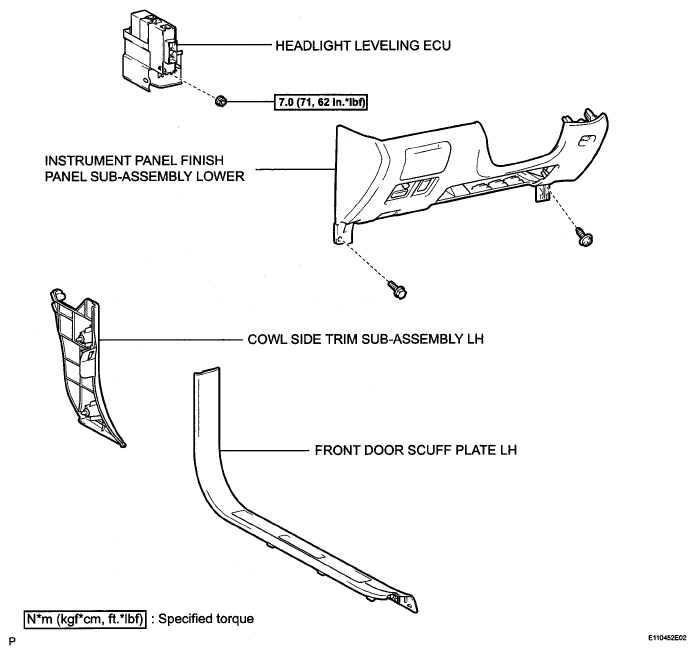

Fig 1: Headlight Leveling ECU Replacement Components With Torque Specifications

G05280263

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
