Headlight Assembly: Components

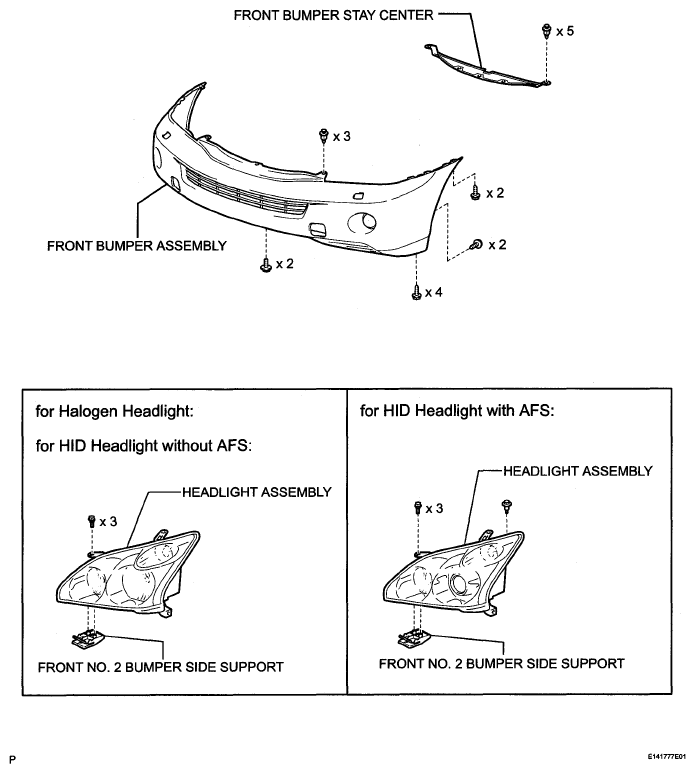

Fig 1: Identifying Headlight Assembly Components
G05280132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

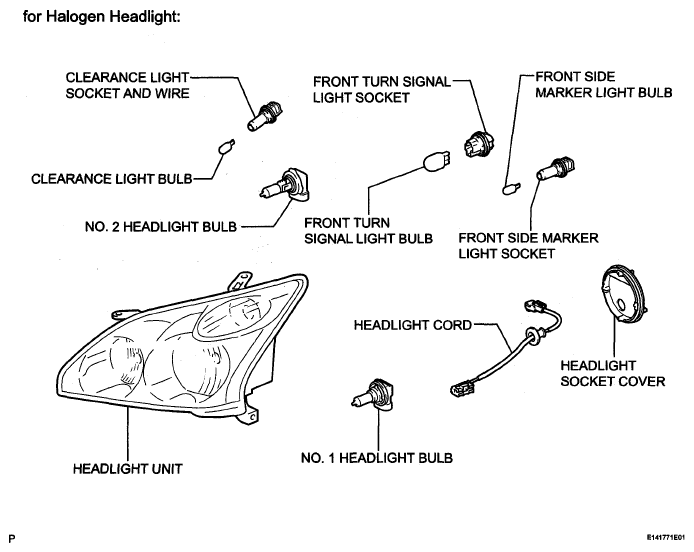

Fig 2: Identifying Headlight Assembly Components (Halogen Headlight)
G05280133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

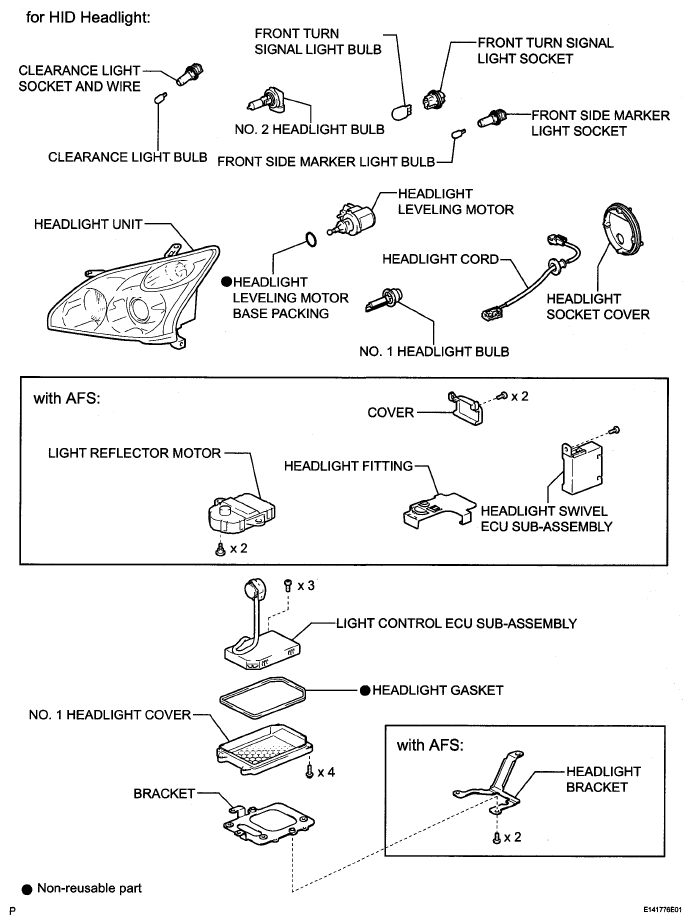

Fig 3: Identifying Headlight Assembly Components (HID Headlight)
G05280134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

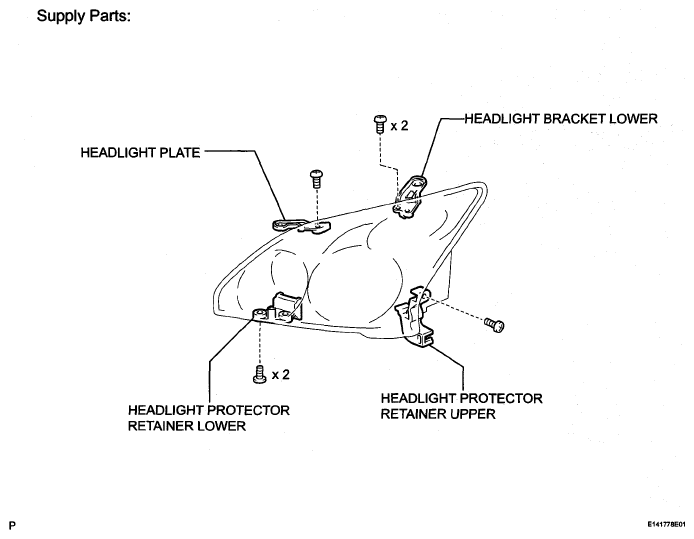

Fig 4: Identifying Headlight Assembly Components (Supply Parts)
G05280135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
