AFS Ecu: Components

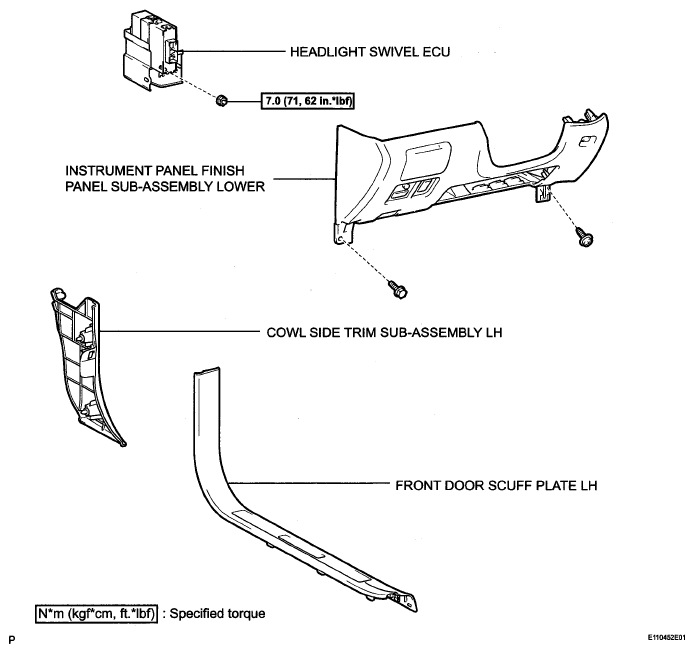

Fig 1: Headlight Swivel ECU Replacement Components With Torque Specifications

G05280260

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
