Distance Control ECU Power Source Circuit: Wiring Diagram

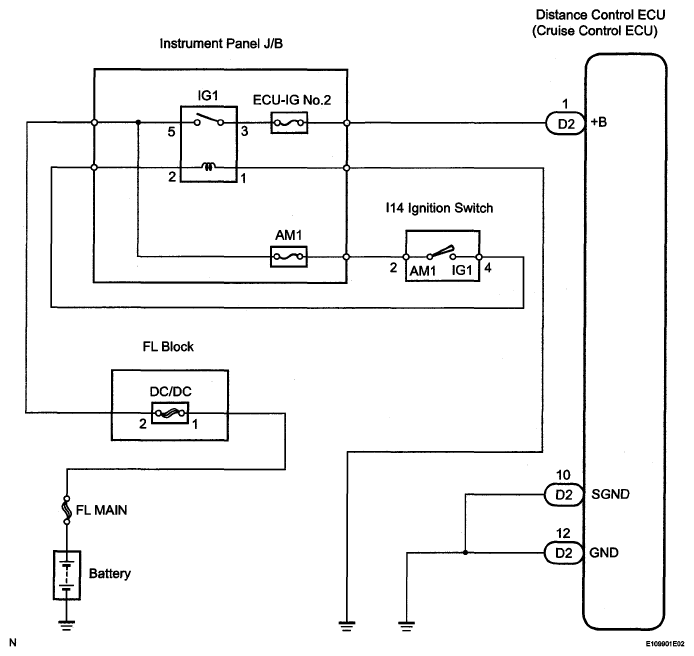

Fig 1: Distance Control ECU Power Source Wiring Diagram

G05279935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
