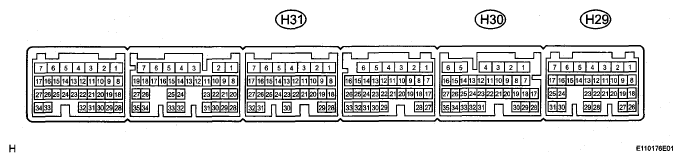

| H29-3 (TC) - H31-5 (E1) |
BR - BR |
Ground |
Ignition switch: ON |
10 to 14 V |
| H29-3 (TC) - H31-5 (E1) |
BR - BR |
Ground |
Ignition switch: ON, Connect terminals TC and CG of DLC3 |
2 V or less |
| H29-24 (SPDI) - H31-5 (E1) |
LG - BR |
Vehicle speed signal |
Engine start → Car stoppage |
Below 1.5 V → 4.7 to 16 V |
| H29-24 (SPDI) - H31-5 (E1) |
LG - BR |
Vehicle speed signal |
during pedal released (Pulse generated) |
3 to 7V |
| H29-25 (ST1-) - H31-5 (E1) |
LG - BR |
Stop light signal |
Ignition switch: ON, Depress brake pedal |
1 V or less |
| H29-25 (ST1-) - H31-5 (E1) |
LG - BR |
Stop light signal |
Ignition switch: ON, Release brake pedal |
10 to 14 V |
| H29-31 (STP) - H31-5 (E1) |
O - BR |
Stop light signal |
Ignition switch: ON, Depress brake pedal |
10 to 14 V |
| H29-31 (STP) - H31-5 (E1) |
O - BR |
Stop light signal |
Ignition switch: ON, Release brake pedal |
1 V or less |
| H29-26 (CCS) - H31-5 (E1) |
P - BR |
Cruise control main switch circuit |
Ignition switch: ON |
10 to 14 V |
| H29-26 (CCS) - H31-5 (E1) |
P - BR |
Cruise control main switch circuit |
Ignition switch: ON, CANCEL switch: hold ON |
6.6 to 10.1 V |
| H29-26 (CCS) - H31-5 (E1) |
P - BR |
Cruise control main switch circuit |
Ignition switch: ON, -/SET switch: hold ON |
4.5 to 7.1 V |
| H29-26 (CCS) - H31-5 (E1) |
P - BR |
Cruise control main switch circuit |
Ignition switch: ON, +/RES switch: hold ON |
2.3 to 4 V |
| H29-26 (CCS) - H31-5 (E1) |
P - BR |
Cruise control main switch circuit |
Ignition switch: ON, MAIN switch: hold ON |
1 V or less |
