UNDERDRIVE Clutch: Components

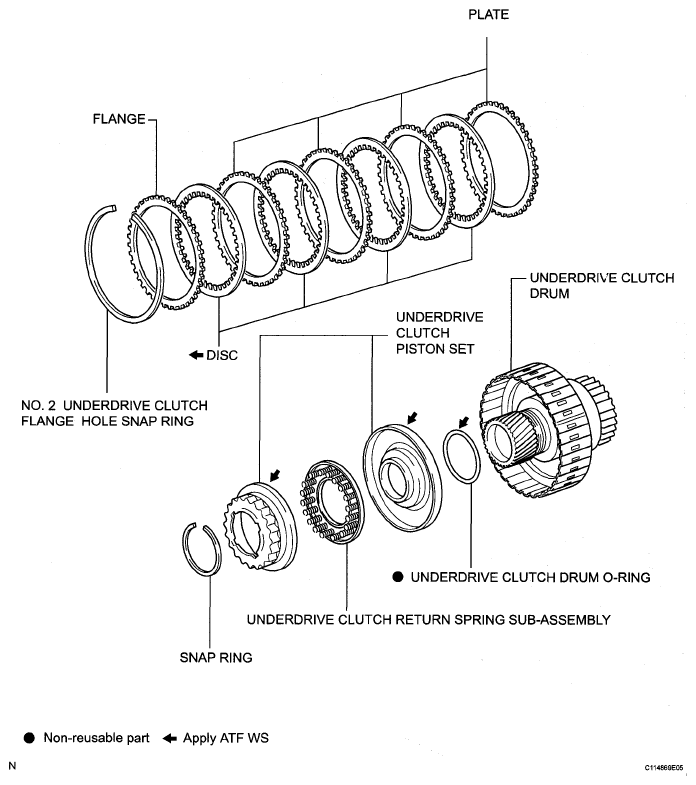

Fig 1: Identifying Underdrive Clutch Components

G05272344

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
