AFS ECU Power Source Circuit: Wiring Diagram

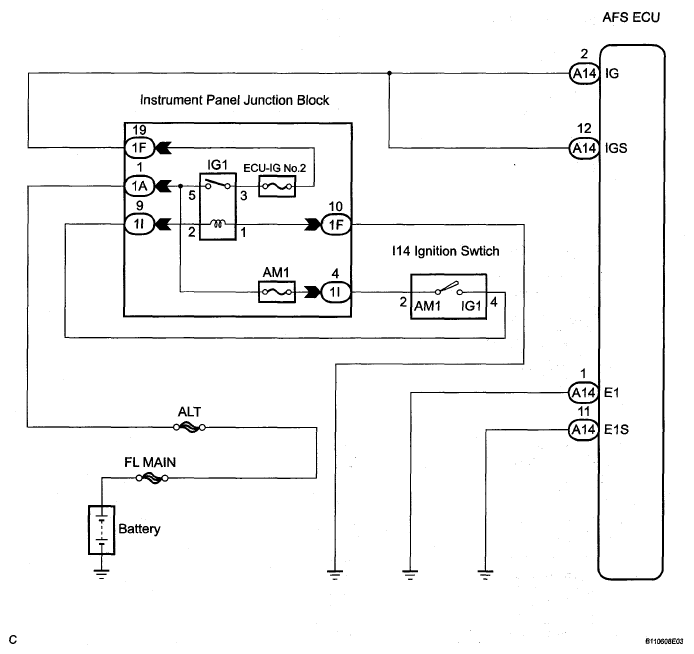

Fig 1: AFS ECU Power Source - Wiring Diagram

G05273884

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
