Power Steering Link: Components

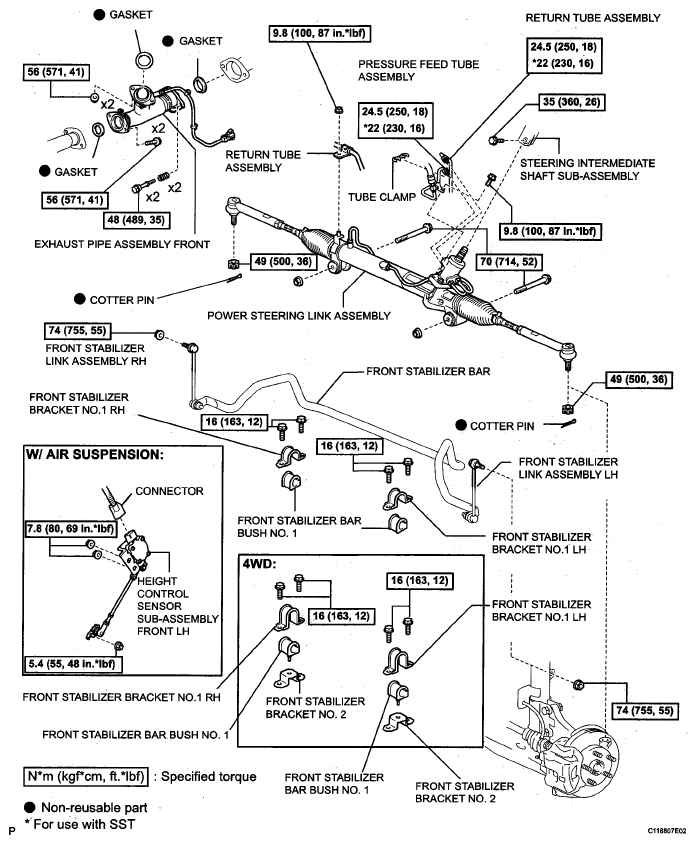

Fig 1: Identifying Power Steering Link Replacement Components With Torque Specifications (1 Of 3)
G05273106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

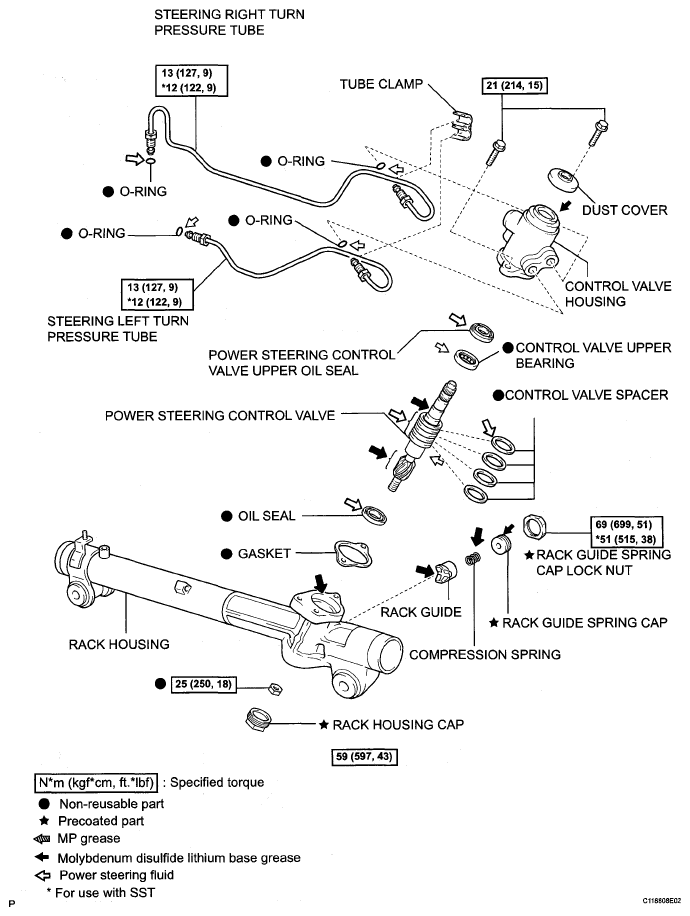

Fig 2: Identifying Power Steering Link Replacement Components With Torque Specifications (2 Of 3)
G05273107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

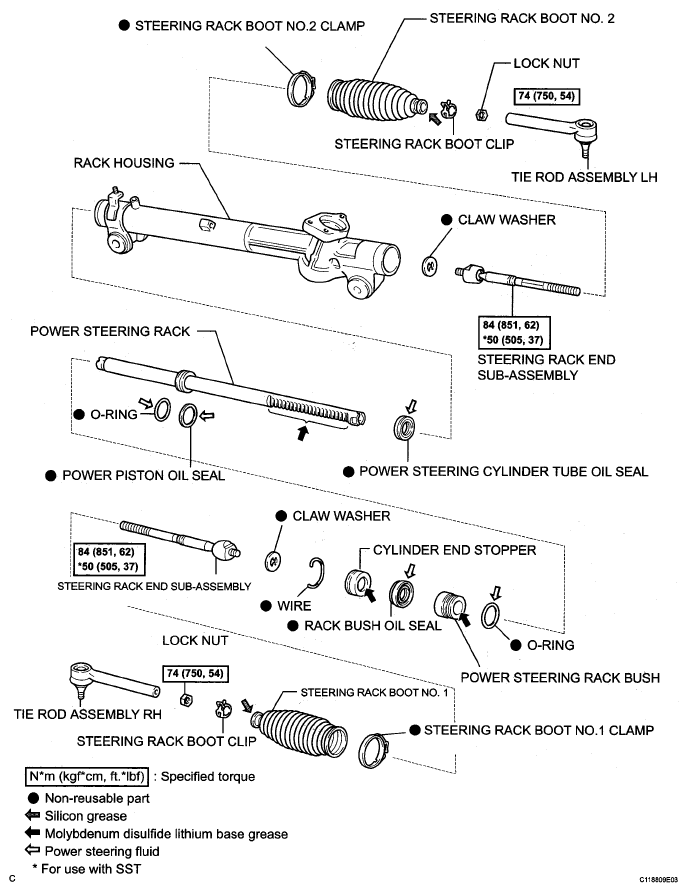

Fig 3: Identifying Power Steering Link Replacement Components With Torque Specifications (3 Of 3)
G05273108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
