Rear Seat Outer Belt Assembly: Components

Fig 1: Identifying Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (1 Of 2)
G05273525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

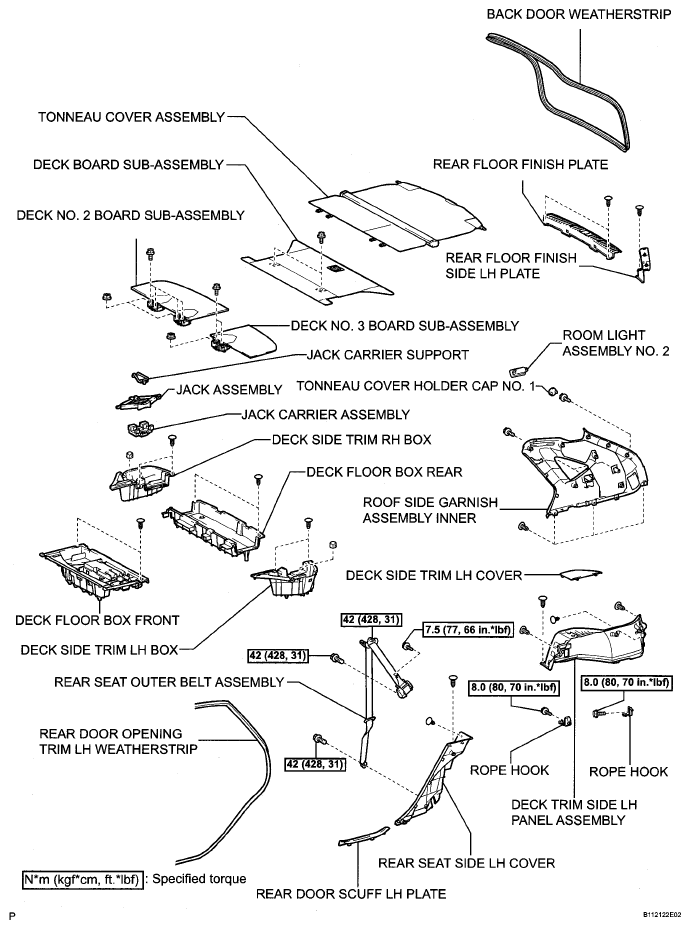

Fig 2: Identifying Rear Seat Outer Belt Assembly Replacement Components With Torque Specifications (2 Of 2)
G05273526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
