Parts Location

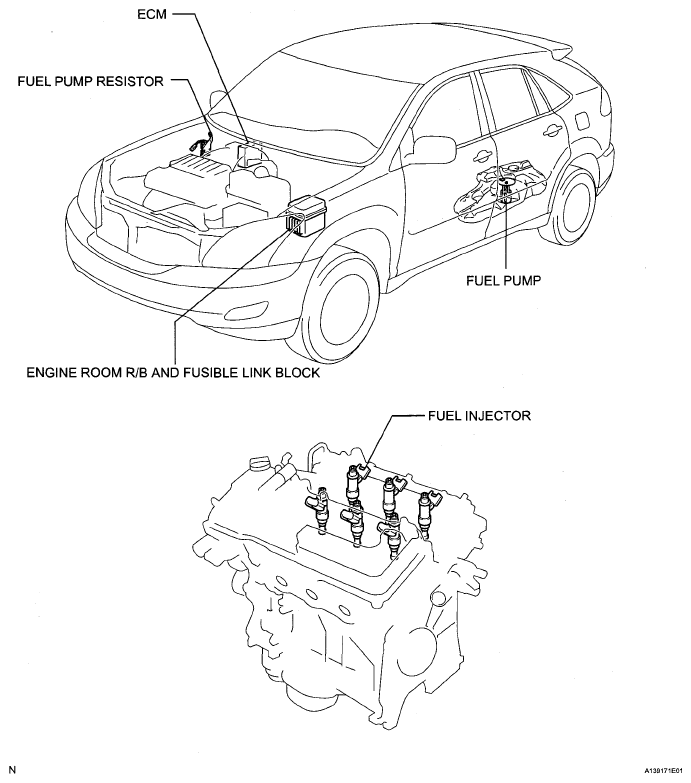

Fig 1: Identifying Fuel System Replacement Components

G05271515

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
