Oil Pump: Installation
- INSTALL TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Using SST, tap in a new oil seal until its surface is flush with the timing chain case edge.
SST 09223-22010, 09506-35010
NOTE:- Keep the lip free from foreign matter.
- Do not tap on the oil seal at an angle.
- Make sure that the oil seal edge does not stick out of the timing chain case.
- Apply MP grease to the oil seal lip.
- Using SST, tap in a new oil seal until its surface is flush with the timing chain case edge.
- INSTALL TIMING CHAIN OR BELT COVER SUB-ASSEMBLY

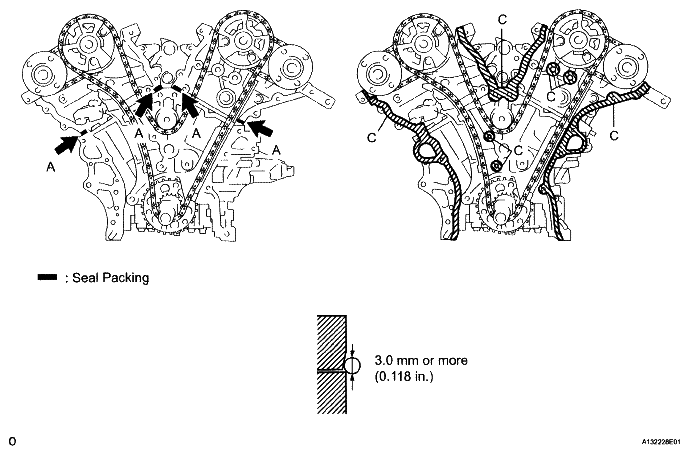

- Apply seal packing in a continuous line to the engine unit.
Seal packing:
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
Seal width:
3.0 mm (0.118 in.)
NOTE:- Be sure to clean and degrease the contact surfaces, especially the surfaces indicated by C.
- When the contact surfaces are wet, wipe them with an oil-free cloth before applying seal packing.
- Install the chain cover within 3 minutes.
- Do not start the engine for at least 2 hours after installing.
- Apply seal packing in a continuous line to the timing chain cover.
Seal packing:
Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent
Toyota Genuine Seal Packing Black 1282B, Three Bond 1282B or equivalent
NOTE:- When the contact surfaces are wet, wipe them with an oil-free cloth before applying seal packing.
- Install the chain cover within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.
- Do not start the engine for at least 2 hours after installing.
Apply seal packing as follows
SEAL PACKING SPECIFICATIONArea Seal Packing Diameter Application Position from Inside Seal Line Continuous Line Area 4.5 mm or more (0.177 in.) 3.0 to 4.0 mm (0.118 to 0.158 in.) Alternate Long and Dashed Line Area 3.5 mm or more (0.138 in.) 2.0 to 3.0 mm (0.079 to 0.118 in.) Dashed Line Area 3.5 mm or more (0.138 in.) 3.0 to 4.0 mm (0.118 to 0.158 in.) Diagonal Line Area 6.0 mm or more (0.236 in.) 5.0 mm (0.197 in.) - Install a new gasket.
- Align the oil pump's drive rotor spline and the crankshaft. Install the spline and chain cover to the crankshaft.
- Temporarily tighten the timing chain cover with the 23 bolts and 2 nuts.
Bolt length
BOLT LENGTH SPECIFICATIONItem Length Bolt A 40 mm (1.57 in.) Bolt B 55 mm (2.17 in.) Bolt C 25 mm (0.98 in.) NOTE: Make sure that there is no oil on the bolt and nut threads. - Fully tighten the bolts in this order: Areas 1 and Area 2.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
- Fully tighten the bolts and nuts in Areas 3.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
HINT:
Tighten the bolts and nuts in the order of upper to lower.
- Fully tighten the bolts in Areas 4.
Torque:
Bolt A
43 N*m (438 kgf*cm, 32 ft.*lbf)
Bolts except bolt A
21 N*m (214 kgf*cm, 15 ft.*lbf)
HINT:
Tighten the bolts in the order of lower to upper.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Apply seal packing in a continuous line to the engine unit.
- INSTALL OIL PAN SUB-ASSEMBLY (See REASSEMBLY )
- INSTALL OIL STRAINER SUB-ASSEMBLY (See REASSEMBLY )
- INSTALL NO. 2 OIL PAN SUB-ASSEMBLY (See REASSEMBLY )
- INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY RH (See REASSEMBLY )
- INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY LH (See REASSEMBLY )
- INSTALL WATER OUTLET (See REASSEMBLY )
- INSTALL OIL COOLER PIPE (w/ Oil Cooler)
- Install a new gasket to the oil pan sub-assembly.
- Install the oil cooler pipe with the bolt and 2 nuts.
Torque: 21 N*m (214 kgf*cm, 16 ft.*lbf)
- INSTALL CRANKSHAFT PULLEY (See REASSEMBLY )
- INSTALL NO. 1 OIL PIPE (See REASSEMBLY )
- INSTALL OIL PIPE (See REASSEMBLY )
- INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (See INSTALLATION )
- INSTALL RADIO SETTING CONDENSER (See INSTALLATION )
- INSTALL NO. 1 ENGINE MOUNTING BRACKET FRONT LH (See INSTALLATION )
- INSTALL WATER PUMP PULLEY (See INSTALLATION )
- INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY (See INSTALLATION )
- INSTALL NO. 2 TIMING GEAR COVER (See INSTALLATION )
- INSTALL V-RIBBED BELT TENSIONER ASSEMBLY (See INSTALLATION )
- INSTALL ENGINE MOUNTING BRACKET RH (See INSTALLATION )
- INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH (See INSTALLATION )
- INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR (See INSTALLATION )
- INSTALL NO. 2 MANIFOLD STAY (See INSTALLATION )
- INSTALL OIL LEVEL GAUGE GUIDE SUB-ASSEMBLY (See INSTALLATION )
- INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH (See INSTALLATION )
- INSTALL IGNITION COIL ASSEMBLY (See INSTALLATION )
- INSTALL INTAKE AIR SURGE TANK ASSEMBLY (See INSTALLATION )
- INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET (See INSTALLATION )
- INSTALL FRONT FRAME ASSEMBLY (See INSTALLATION )
- INSTALL VANE PUMP ASSEMBLY (See INSTALLATION )
- INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
(See INSTALLATION )
