Oil Pump: Components

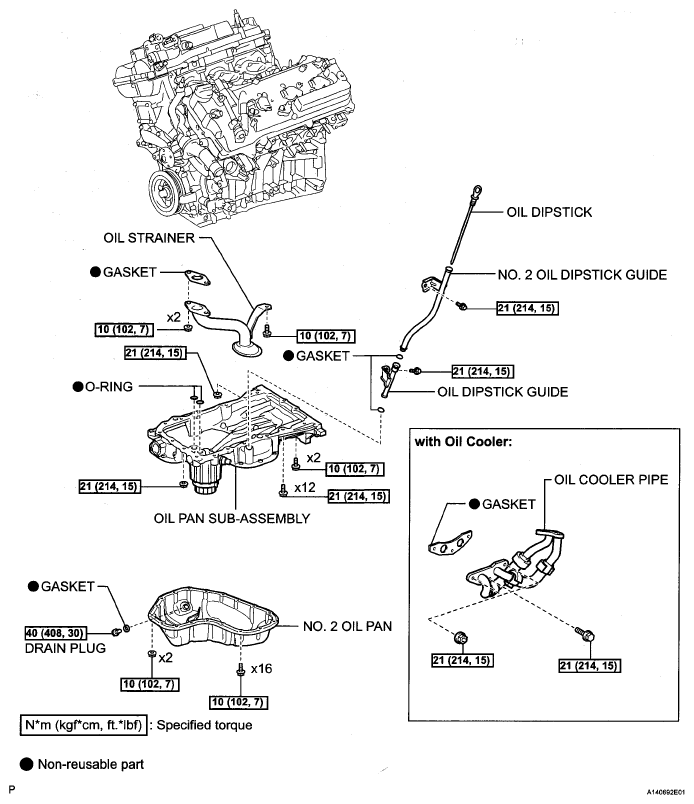

Fig 1: Identifying Oil Pump Replacement Components With Torque Specification (1 Of 4)
G05268438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Oil Pump Replacement Components With Torque Specification (2 Of 4)
G05248753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Oil Pump Replacement Components With Torque Specifications (3 Of 4)
G04975449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Oil Pump Replacement Components With Torque Specifications (4 Of 4)
G04975450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
