Emission Control: Canister: Components

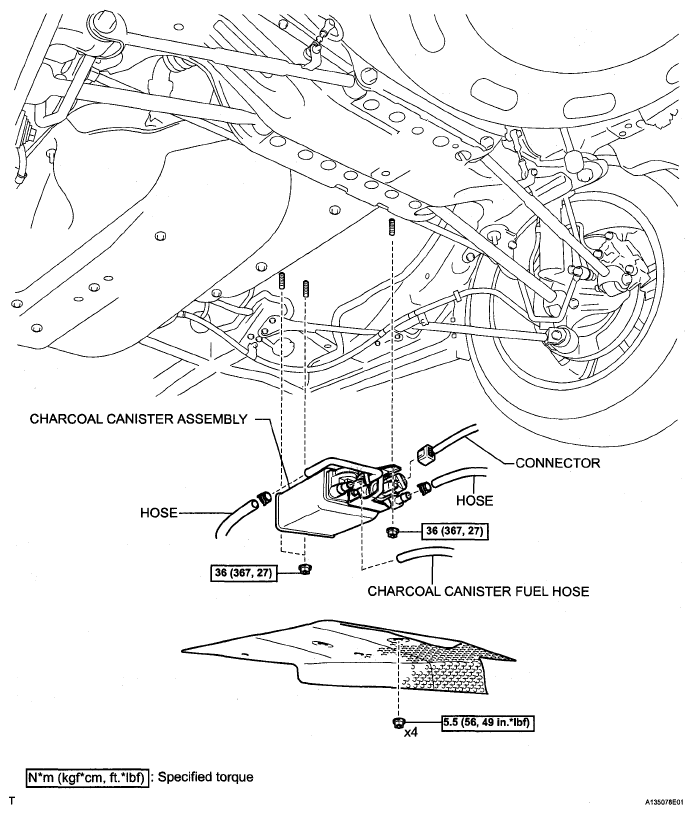

Fig 1: Identifying Canister Replacement Components With Torque Specifications

G05271643

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
