Air Fuel Ratio Sensor: Components

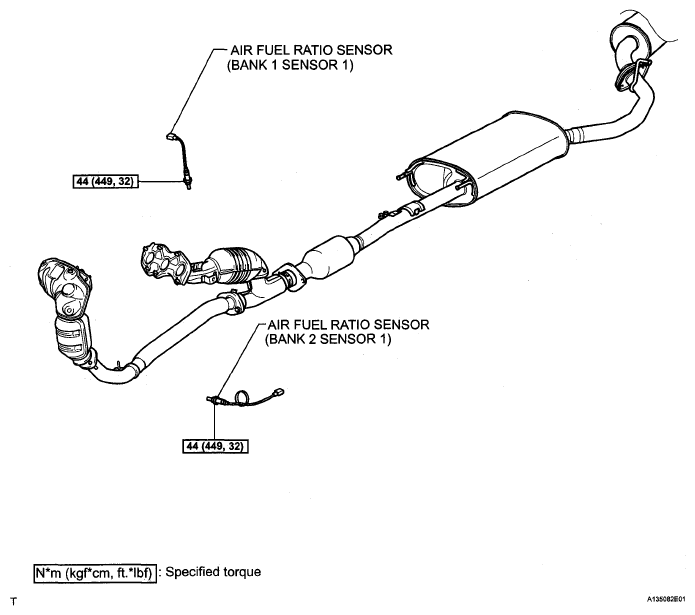

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications

G05271678

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
