Meter / Gauge System: Initialization

HINT:

The ODO/TRIP switch is located on the right side of the light control rheostat.

1. Turn the ignition switch off.
2. Turn the ignition switch to the ON position.
3. Push the ODO/TRIP switch until ODO meter appears.
4. Turn the ignition switch off.
5. Turn the ignition switch to the ON position while pressing and holding the ODO/TRIP switch. Hold the ODO/TRIP switch until the following conditions are met and 5 seconds have passed.

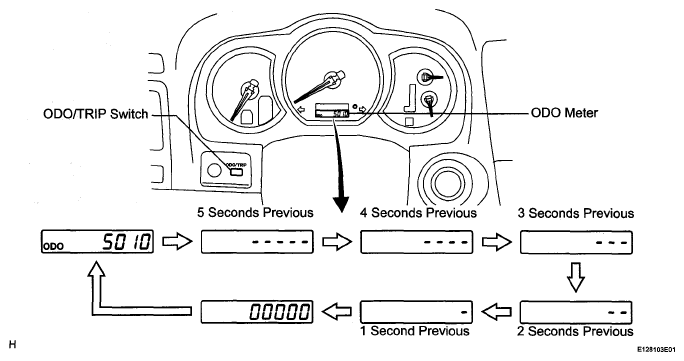

   Fig 1: Identifying ODO Meter Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. ODO meter indicates "0000" for 1 second after finishing this procedure.
