Power Seat for Driver's Seat without Memory: Notes

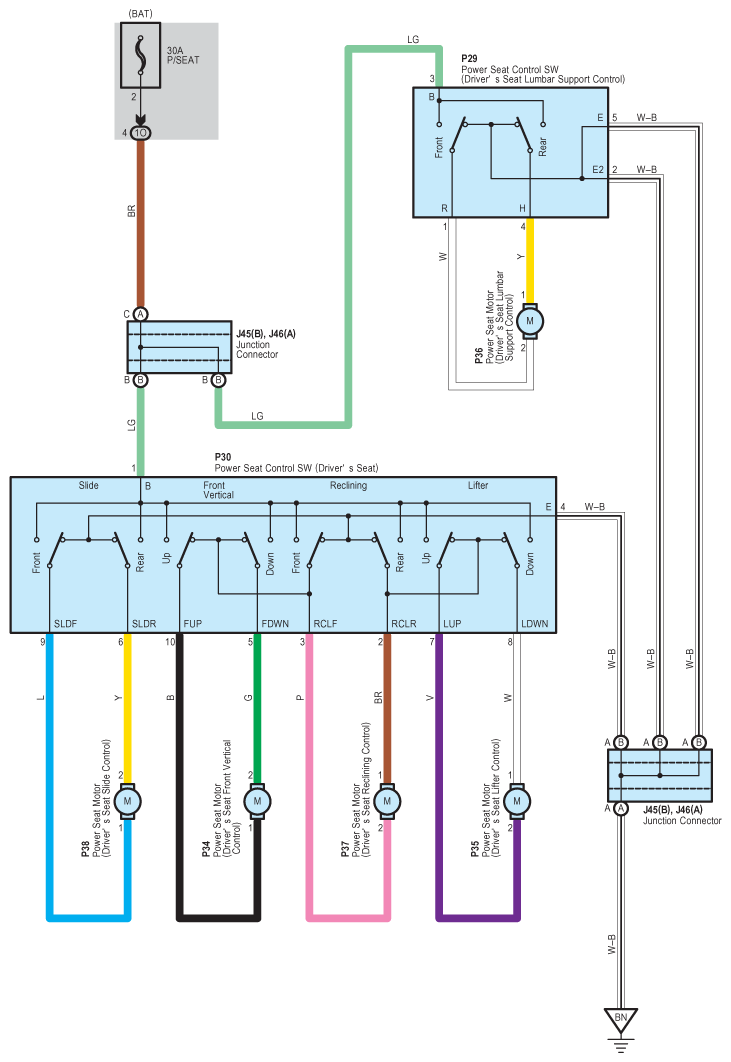

Fig 1: Power Seat For Driver's Seat Without Memory - Circuit Diagram

G08922063

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
