Front Wiper and Washer without Auto Wiper System: Notes

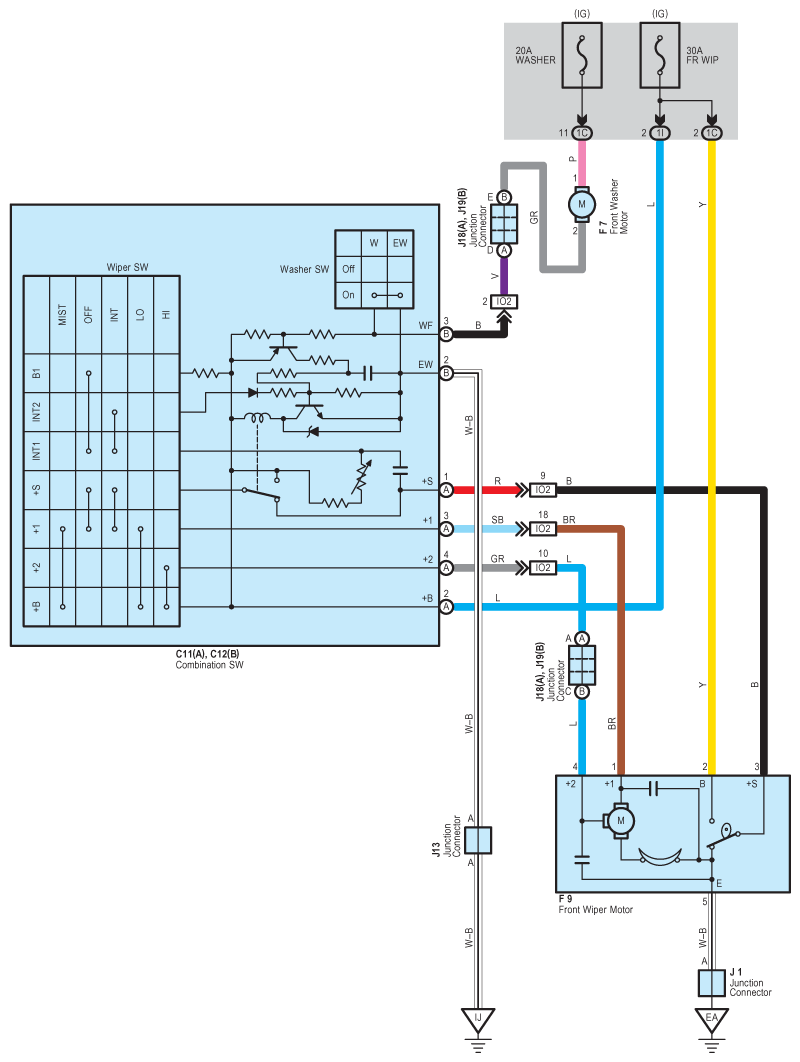

Fig 1: Front Wiper And Washer Without Auto Wiper System - Circuit Diagram

G08922042

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
