Back Door Opener without Power Back Door: Notes

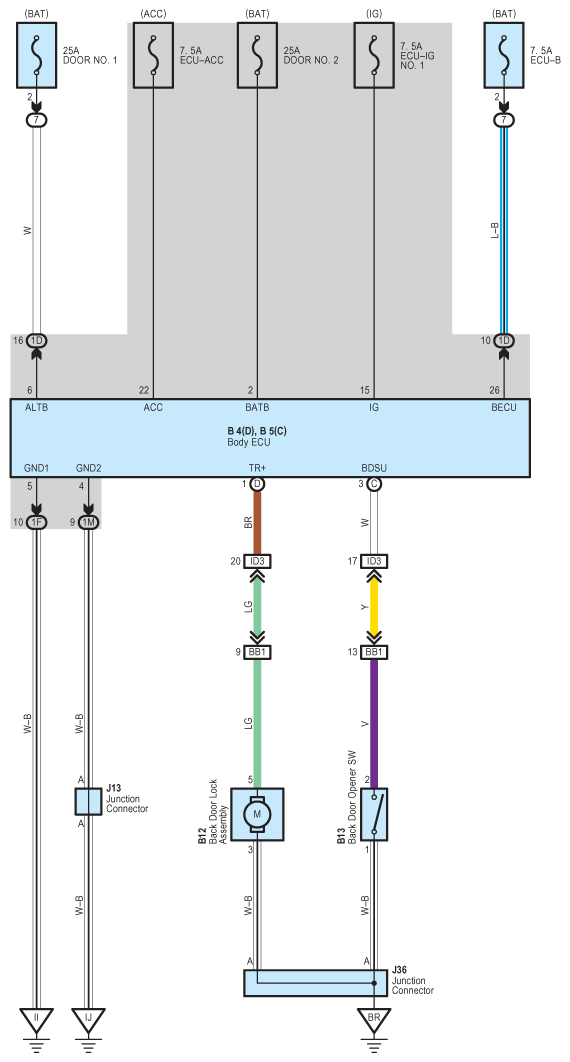

Fig 1: Back Door Opener Without Power Back Door - Circuit Diagram

G08922036

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
