Air Suspension System: Notes

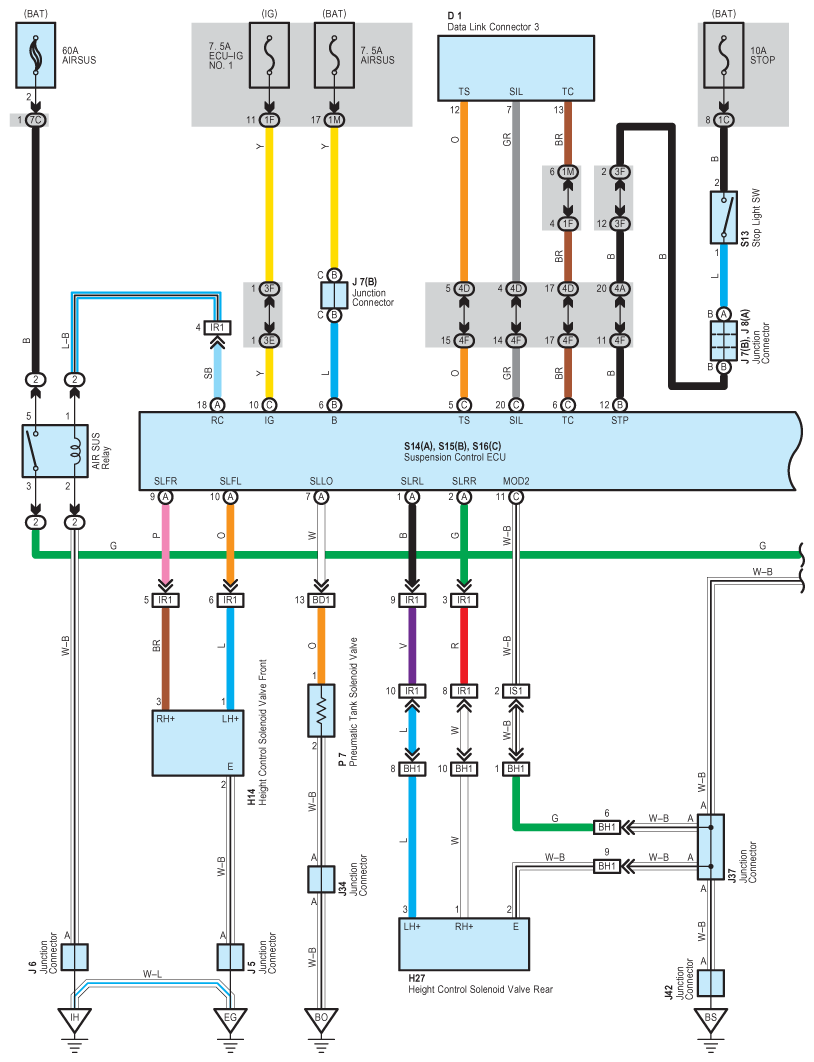

Fig 1: Air Suspension System - Wiring Diagram (1 Of 4)
G08921973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

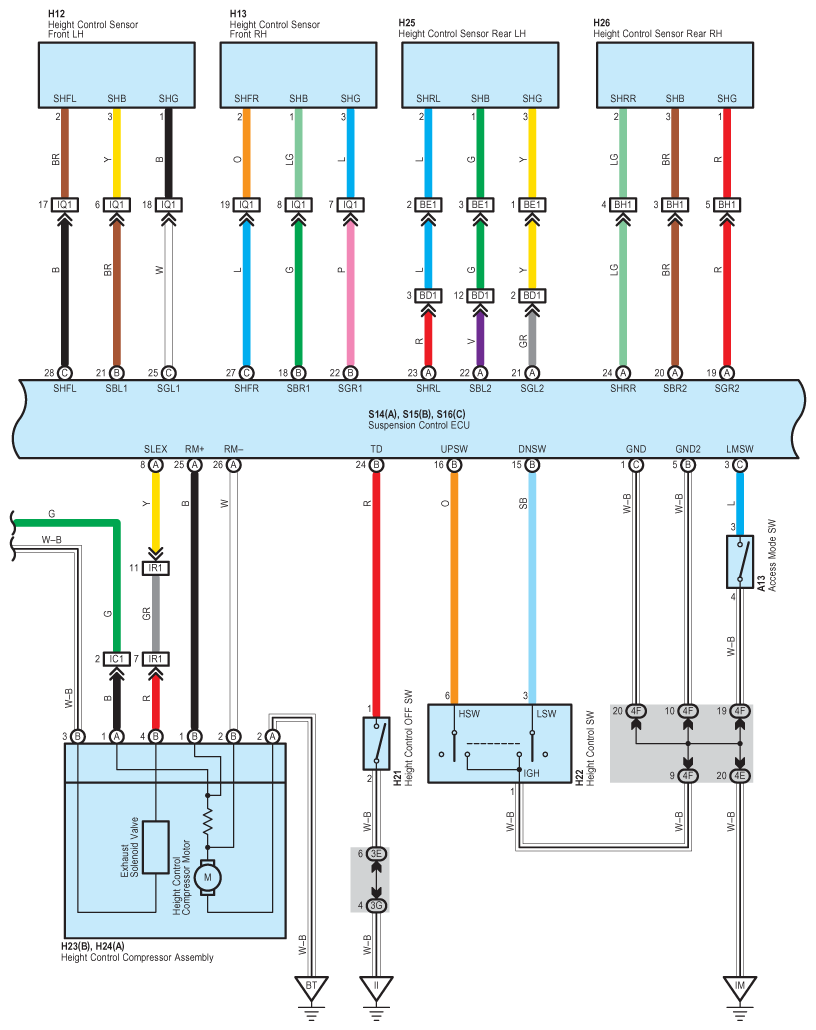

Fig 2: Air Suspension System - Wiring Diagram (2 Of 4)
G08921974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

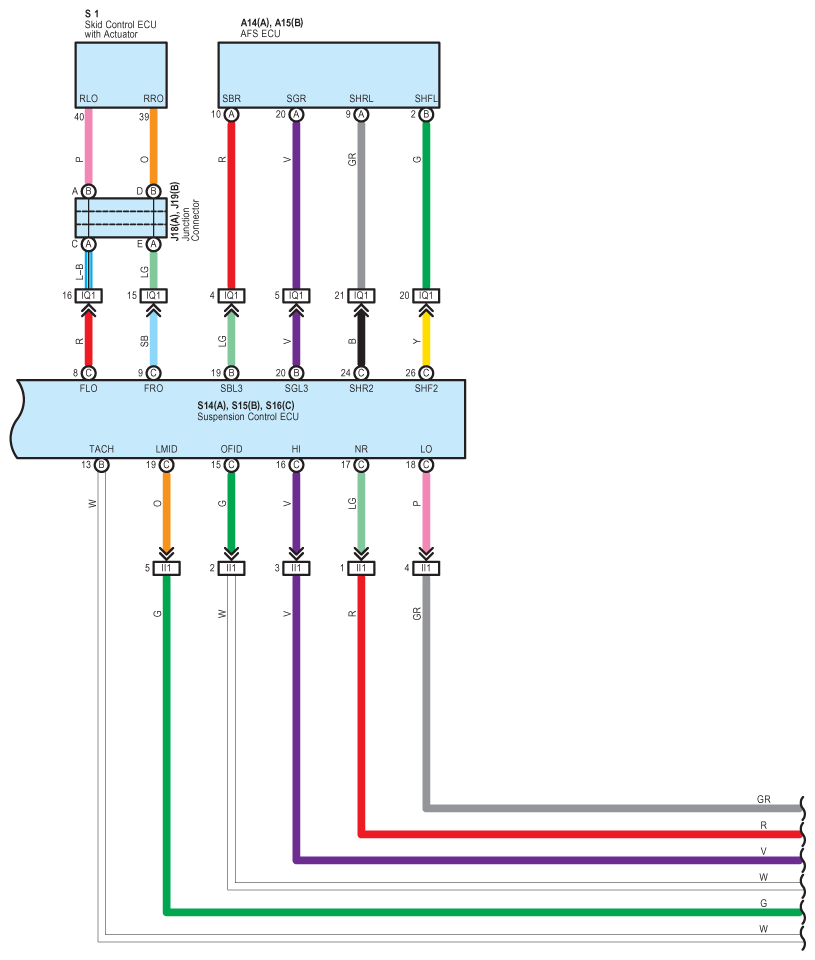

Fig 3: Air Suspension System - Wiring Diagram (3 Of 4)
G08921975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

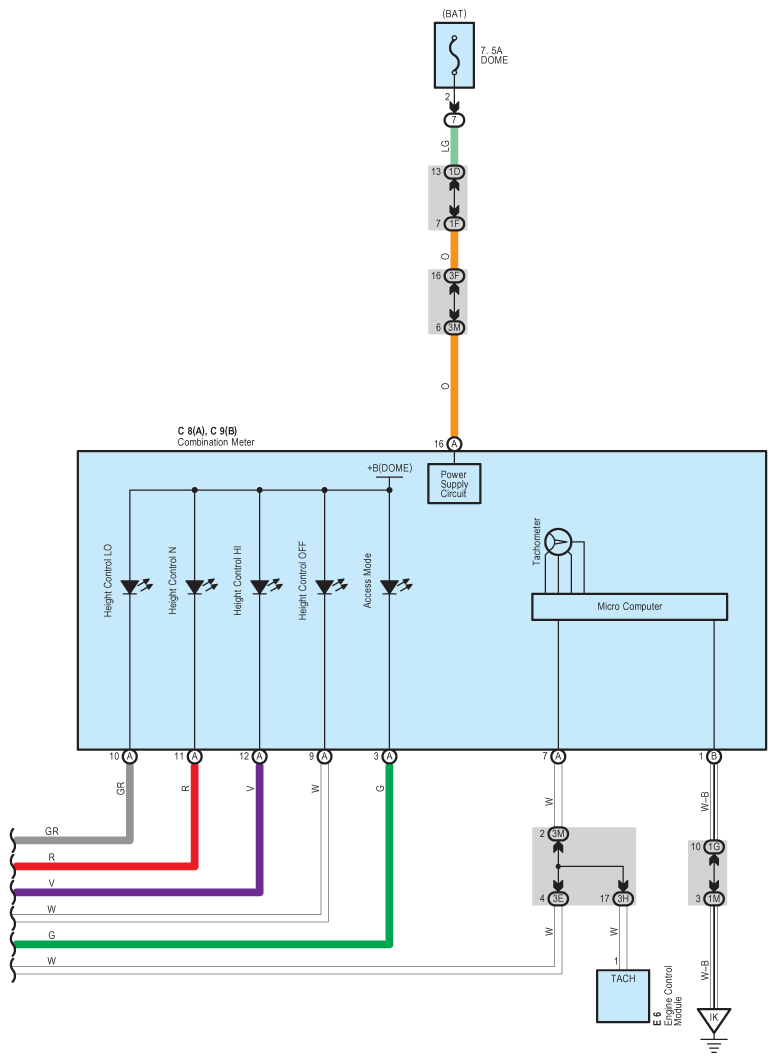

Fig 4: Air Suspension System - Wiring Diagram (4 Of 4)
G08921976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
