Door Control Receiver: Components

Fig 1: Identifying Door Control Receiver Replacement Components (1 Of 2)
G05274287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

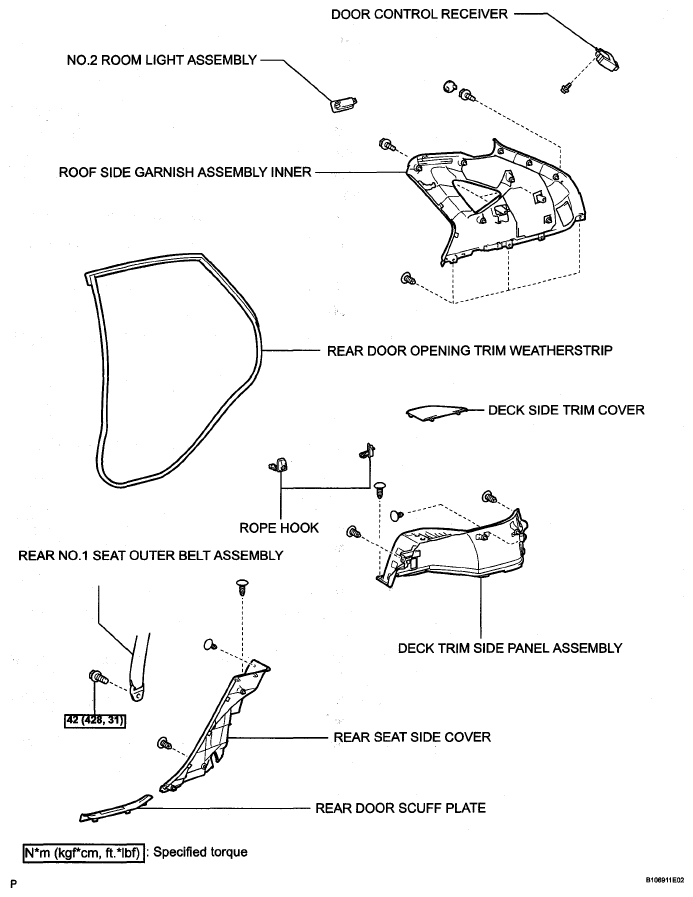

Fig 2: Identifying Door Control Receiver Replacement Components With Torque Specifications (2 Of 2)
G05270532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
